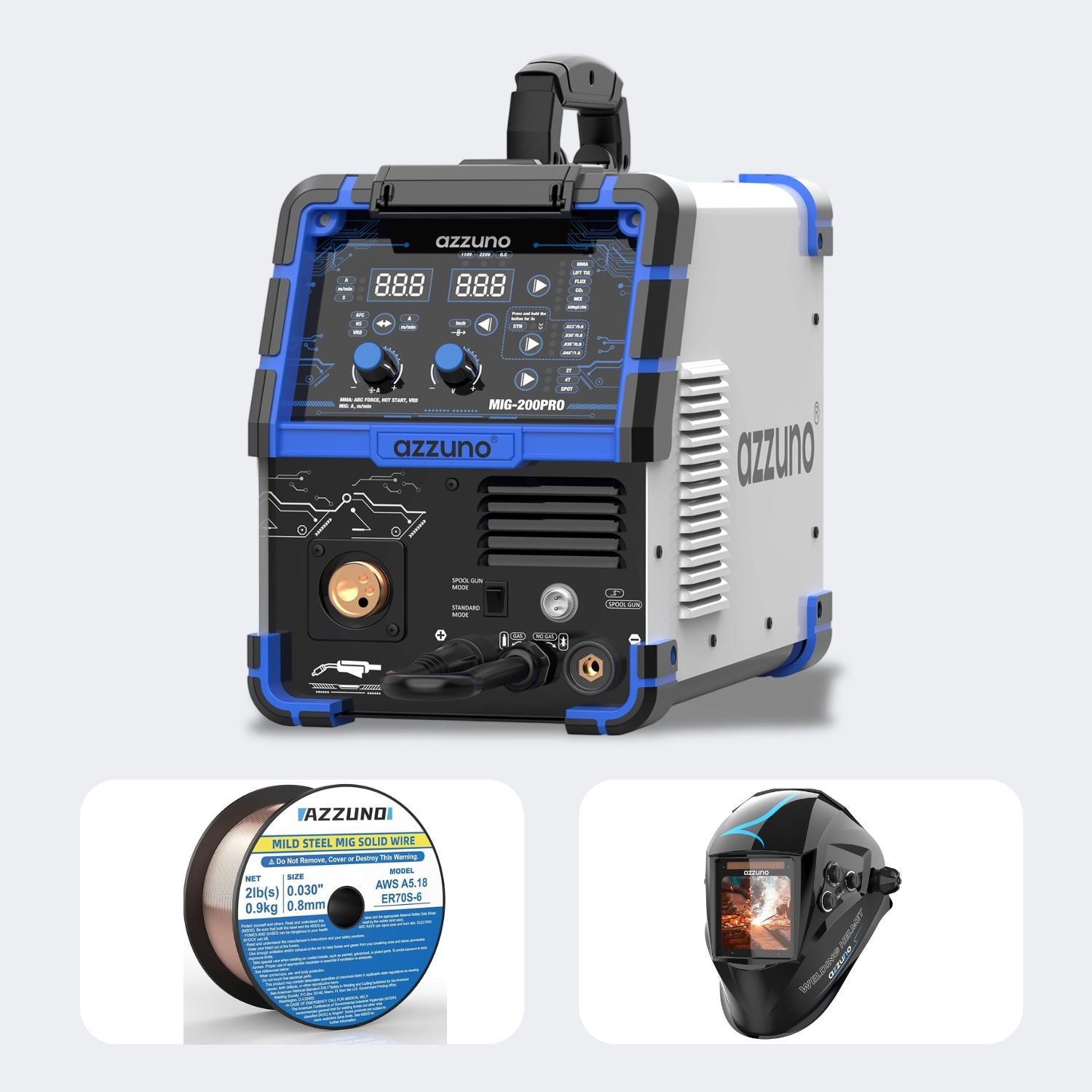

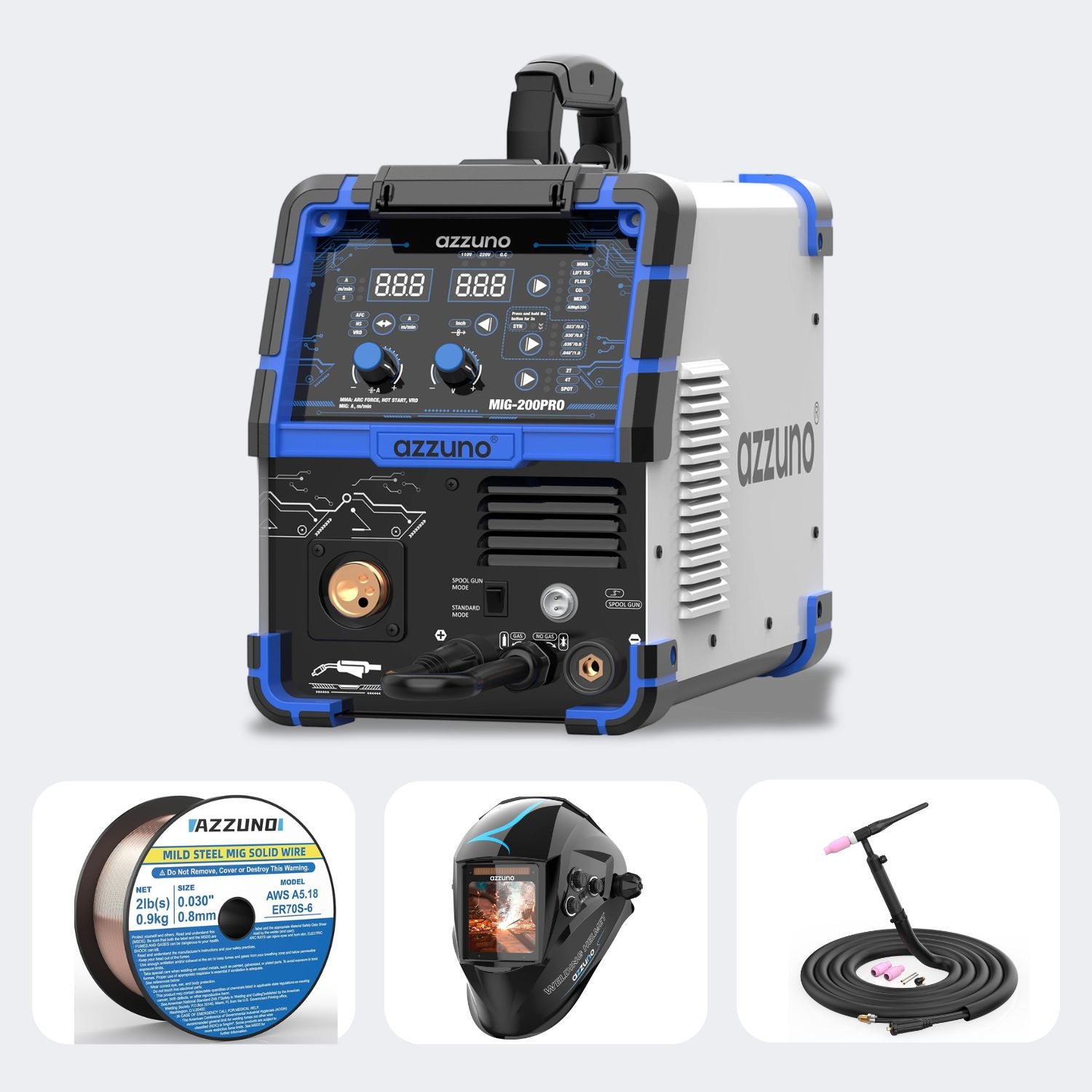

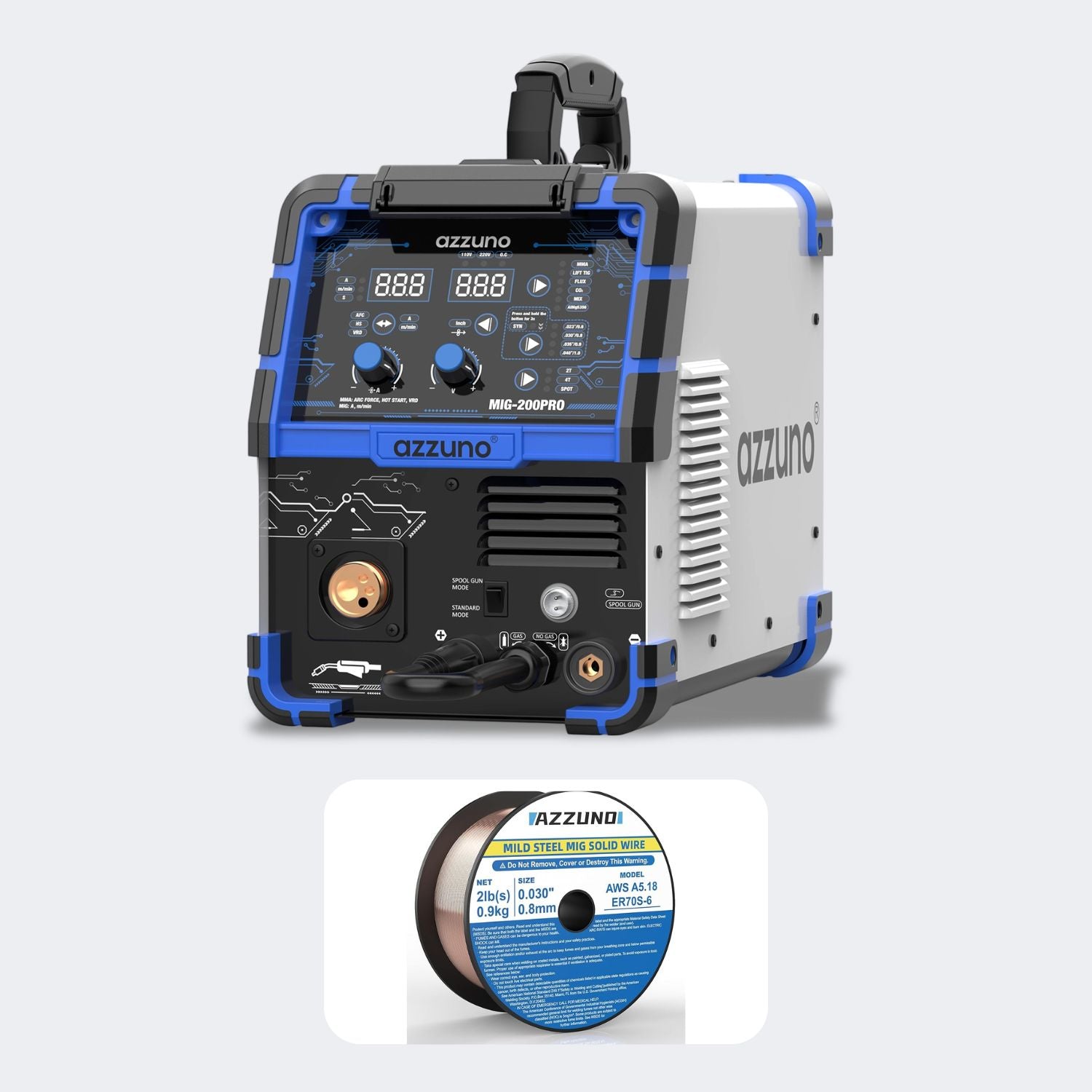

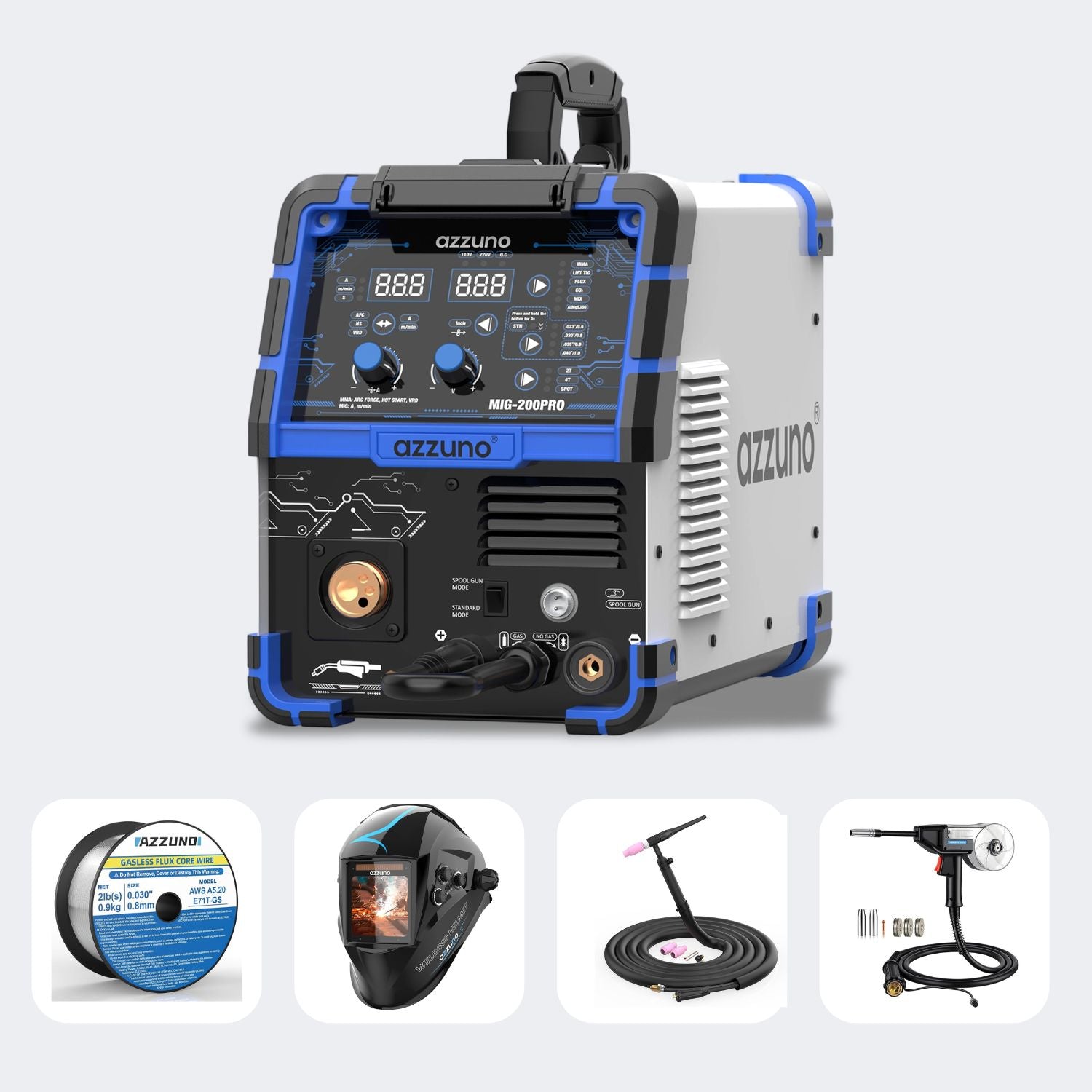

Azzuno 200A 110V/220V 8 in 1 MIG Multiprocess Welder
- 8-in-1 Multi-Process Welding - Handle a wide range of welding tasks with Gas MIG, MAG, Flux Core MIG, Aluminum MIG, Spool Gun MIG, Spot MIG, Lift TIG, and Stick Welding—all in one machine.
- Dual Aluminum Welding Options - Weld aluminum your way using the included Teflon liner or upgrade to a compatible spool gun for improved wire feeding performance.
- Synergic Control - The intelligent SYN function automatically matches recommended parameters, making setup faster and easier for users of all experience levels.
- 110V/220V Dual Voltage - Operate on either 110V or 220V input power for greater flexibility at home, in the workshop, or on the job site.
- 2T, 4T & Spot Welding Modes - Choose the control mode that best fits your application, whether you need continuous welding, reduced hand fatigue, or precise spot welds.
- Wide Wire Compatibility - Supports .023", .030", .035", and .040" solid and flux core wire, along with .035" and .040" aluminum wire for various welding projects.
- Multiple Safety Protections - Built-in over-heating, over-current, and VRD protection help ensure safe and reliable operation during every job.

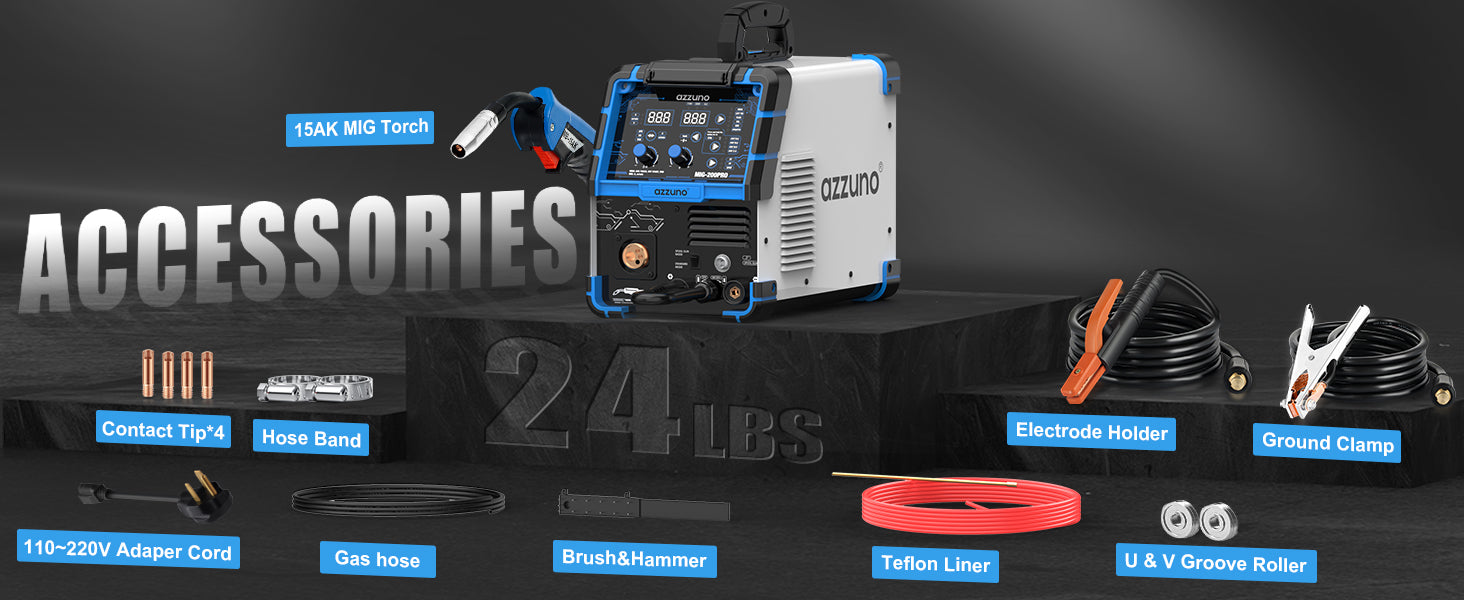

- Complete Starter Package - Comes ready to weld with essential accessories, including a 15AK MIG torch, ground clamp, electrode holder, adapter cord, gas hose, drive rollers, contact tips, and Teflon liner.
Multi-process Welder Machine×1,
15AK MIG Torch×1,
Ground Clamp×1,
Electrode Holder×1,
110V~220V Adapter Cord×1 Brush&Hammer×1,
Gas hose×1,
Hose Band×2,
Drive Roller×2,
Contact Tip×4,
Teflon Liner×1,
User Manual×1.
Orders Over $100
at azzunotools.com
MIG-200PRO Aluminum MIG Welder
The AZZUNO 200A 8-in-1 MIG Welder combines dedicated aluminum welding capability with the versatility of a true multi-process machine. Featuring dual aluminum welding options, synergic control, and 110V/220V dual-voltage operation, it is built to handle everyday repairs, fabrication work, and DIY projects with confidence and ease.
Performance Overview: Why Choose MIG-200PRO?
The MIG-200PRO 8-in-1 is built for versatility without complexity. Eight welding functions — including dual aluminum modes (Teflon-liner MIG and spool gun) — give you the flexibility to handle steel, stainless, and aluminum without switching machines. Synergic control keeps setup simple, making it a strong choice for shops that need multi-material capability but don't want to train on multiple systems.
110V / 220V Dual Voltage
Gas MIG, Gasless MIG, SYN MIG, Lift TIG, Stick, Spot, Spool Gun, Aluminum MIG
30–200A
10–200A
60% @ 200A
.023"–.040" solid/.030"–.040" flux core / .035"–.045" aluminum
Mild Steel: up to 8mm
Overheating protection, Over-current protection, VRD protection

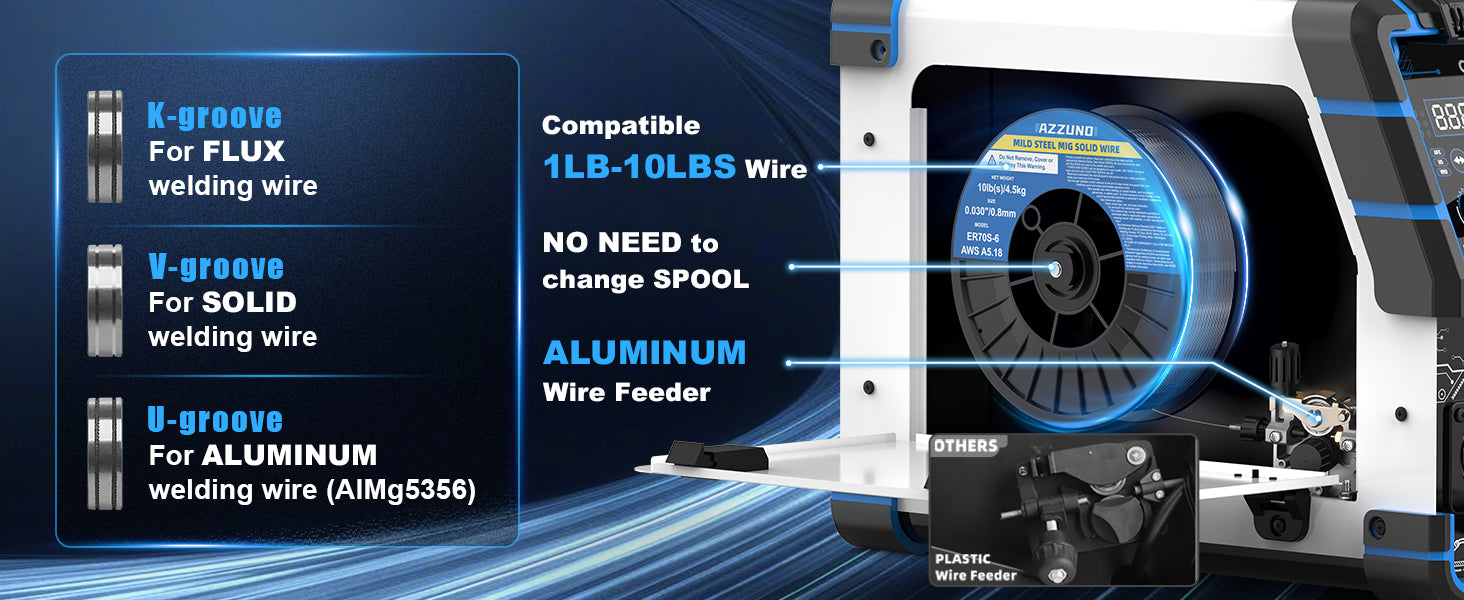

Wire Feed Guide
Who It’s For
This 200A 8‑in‑1 multiprocess welder is built for users who want one machine to handle most of their steel work:
- DIY and hobby welders who need MIG, Stick, and Lift TIG in one compact unit.
- Auto repair and light fabrication users working mainly with mild steel and stainless.
- Home and farm users taking care of gates, trailers, brackets, and general maintenance.
- Small shops that want to add a versatile, budget‑friendly multiprocess welder to their setup

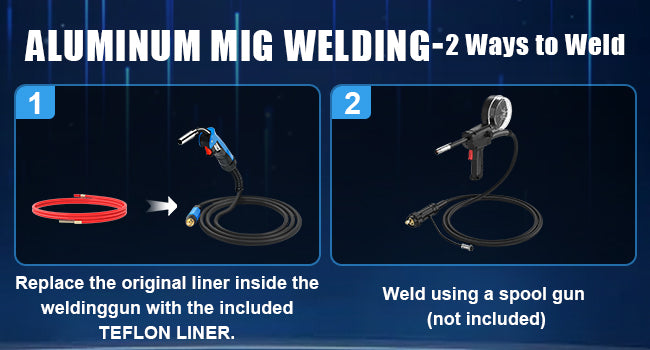

Two Ways to Weld Aluminums.

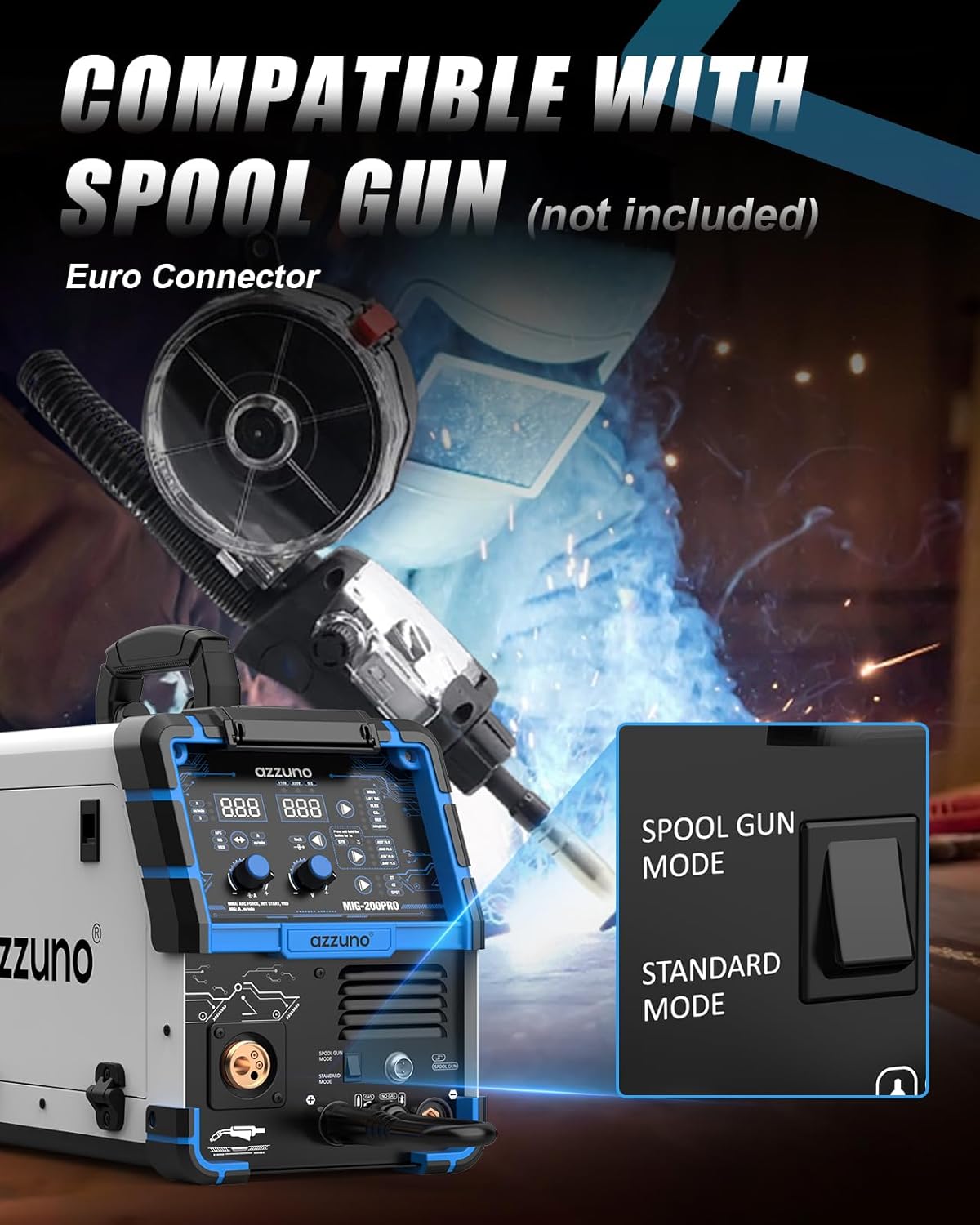

Choose the aluminum welding setup that works best for your projects. Replace the standard liner with the included Teflon liner for a simple aluminum MIG setup, or pair the machine with a compatible spool gun for smoother wire feeding and enhanced performance on demanding application
Compatible Welding Torches
Designed for greater flexibility, the AZZUNO 200A works with the included 15AK MIG torch with Euro connector and supports a WP-17V Lift TIG torch with a 35–50 connector, allowing you to switch between welding processes with ease.

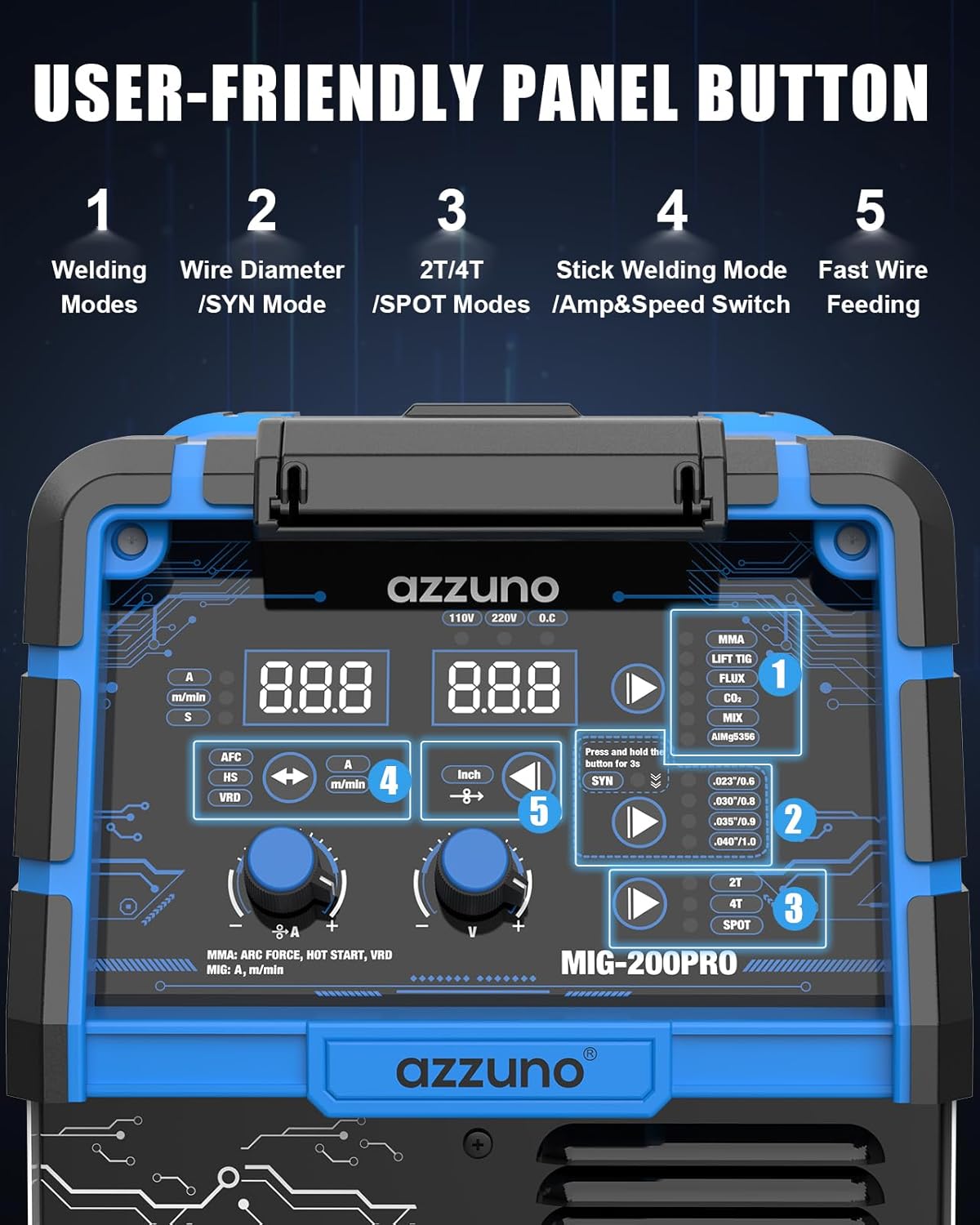

PANEL INTRODUCTION
WELDING CONNECTIONS
PACKING LIST
Performance Overview
| Model | Core Welding/Cutting Processes | Output Range & Voltage | Wire & Consumable Compatibility | Feature | Best For |
|---|---|---|---|---|---|
| Azzuno MF-200L | Pulse MIG, Gas/Gasless MIG, TIG, Stick, Plasma Cut | 30A-200A (MIG) / 10A-200A (TIG) / 40A (Cut) | 0.030"(0.8mm) / 0.035"(0.9mm) | 1-11 lbs Spool | Single/Double Pulse MIG & Integrated HF Plasma Cutter | Premium aluminum MIG pulse welding, clean plasma cutting & ultimate multi-process shop versatility |
| Azzuno MF-160PRO | Pulse MIG, Gas/Gasless MIG, TIG, Stick, Plasma Cut | 30A – 160A (15-40A Cut) | 110V/220V Dual | 0.030"(0.8mm) / 0.035"(0.9mm) | 2 lbs Spool | Compact Single Pulse MIG & Built-in Pilot Arc Cutter | Highly portable DIY pulse aluminum welding and light-duty garage metal fabrication |
| Azzuno MIG-250F | MIG (Gas/Gasless), Spool Gun Ready, TIG, Stick | 50A – 250A | 110V/220V Industrial Dual | 0.030" – 0.040" (0.8-1.0mm) | 2-11 lbs Spool | Heavy-Duty Dual-Drive Feed & Graphite/Teflon Liner | High-amperage structural steel, thick plate fabrication & dedicated spool gun aluminum tasks |
| 👉 MIG-200PRO | MIG, Gasless Flux Core, Lift TIG, Stick, Spool Gun Ready | 30A – 200A | 110V/220V Dual Voltage | 0.030"(0.8mm) / 0.035"(0.9mm) | 2-11 lbs Spool | Full Digital Synergic Control & Mode Memory Recall | Comprehensive multi-process home shop setups spanning standard steel to light aluminum |
| Azzuno MIG-200F | Gas MIG, Gasless Flux Core, Lift TIG, Stick | 40A – 200A | 110V/220V Dual Voltage | 0.030"(0.8mm) / 0.035"(0.9mm) | 2-11 lbs Spool | Classic Manual Parameter Tuning & High Duty Cycle | Traditional welding operators prioritizing robust analog control and deep carbon steel penetration |
| Azzuno MIG-135F | Gasless Flux Core MIG Only, Lift TIG, Stick | 20A – 135A | 110V/120V Household Only | 0.030" (0.8mm) / 0.035" (0.9mm) | 2 lbs Spool Only | Smart Amp/Volt Auto-Match & Lightweight Inverter | Hobbyist DIY maintenance, outdoor windy environments & 110V standard garage projects |
| Azzuno MIG-200L | Gas MIG, Flux Core, MAG, Aluminum MIG, Spot MIG, Lift TIG, Stick, Spool Gun Ready | 30A – 200A | 110V/220V Dual 60% @ 200A Duty Cycle |
.023" – .045" (0.6~1.2mm) 1–10 lbs Spool |
Synergic Control + Manual Mode, 2T/4T Trigger, Large LED Display, VRD / Hot Start / Anti-Stick / Arc Force (Stick) | Versatile home shop & light fabrication — steel, stainless, aluminum & copper; automotive repairs, equipment maintenance & DIY projects |
| Azzuno MIG-200L | Gas MIG, Flux Core, MAG, Aluminum MIG, Spot MIG, Lift TIG, Stick, Spool Gun Ready | 30A – 200A | 110V/220V Dual 60% @ 200A Duty Cycle |
.023" – .045" (0.6~1.2mm) 1–10 lbs Spool |
Synergic Control + Manual Mode, 2T/4T Trigger, Large LED Display, VRD / Hot Start / Anti-Stick / Arc Force (Stick) | Versatile home shop & light fabrication — steel, stainless, aluminum & copper; automotive repairs, equipment maintenance & DIY projects |
FAQ
Q1: What metals can the Azzuno MIG-200PRO weld, and does it support aluminum?
A: Yes, the Azzuno MIG-200PRO delivers versatile performance across aluminum, copper, steel, stainless steel, and other metal alloys. For precise aluminum welding, the machine supports two reliable methods: replacing the liner with a Teflon conduit for standard wire feeding, or connecting a dedicated LBT150 spool gun (sold separately) for enhanced wire control.
Q2: What welding processes are supported by the Azzuno MIG-200PRO?
Answer: As an advanced 8-in-1 multi-process workstation, the Azzuno MIG-200PRO integrates Gas MIG, MAG, Flux-Core MIG (gasless), specialized Aluminum MIG, Spool Gun MIG, precision Spot MIG, Lift TIG, and Stick/MMA welding modes into a single compact unit.
Q3: What wire types and sizes are compatible with the Azzuno MIG-200PRO?
Answer: The Azzuno MIG-200PRO welder is highly adaptable to various fabrication needs, fully supporting .023"/.030"/.035"/.040" Solid wires and Flux-Core wires, as well as specialized .035"/.040" Aluminum welding wires.
Q4: Is the Azzuno MIG-200PRO welder safe and suitable for beginners?
Answer: Yes, absolutely. The Azzuno MIG-200PRO features an intelligent Digital Synergic MIG system that automatically harmonizes current and wire feeding speed, allowing beginners to secure optimal parameters instantly. For professional growth, it also allows manual override for MIG, Stick, and Lift TIG modes as your welding skills improve.
Q5: What safety protections are included in the Azzuno MIG-200PRO?
Answer: Built for rigorous workshop safety, the Azzuno MIG-200PRO is engineered with comprehensive protective systems, including Overheating protection, Over-current protection, and VRD (Voltage Reduction Device) electric shock protection, backed by our 1-year quality guarantee.
Q6：Can I run the Azzuno MIG-200PRO on a standard household outlet?
Answer: Yes. The Azzuno MIG-200PRO features dual-voltage flexibility. It operates seamlessly on standard 110V household outlets for lighter DIY tasks and maximum portability. For heavy-duty fabrication requiring higher amperage and a superior duty cycle, switching to a 220V power source is recommended.
Q7：What are the exact output currents and duty cycles for the Azzuno 200A (MIG-200PRO) under 110V and 220V?
The Azzuno MIG-200PRO features a professional-grade 60% duty cycle at its maximum outputs. When connected to an industrial 220V power source, it delivers an output range of 30-200A for MIG and 10-200A for Lift TIG. When running on a standard household 110V outlet, the maximum output is safely managed up to 120A (MIG) to prevent tripping household circuit breakers, maintaining a stable 60% duty cycle at 120A and shifting to a 100% duty cycle at 93A.
Q8：How does the built-in Spot Welding Timer feature operate on the Azzuno 200A MIG Welder?
The specialized SPOT welding mode features an adjustable digital timer on the control panel, allowing users to precisely program the arc duration for short, consistent intervals. This micro-controlled heat input ensures factory-perfect spot welds and uniform weld nuggets on ultra-thin sheet metals, making it highly optimized for automotive bodywork panel patching, quarter panels, and exhaust repairs without warping the metal.
Q9：Does the Azzuno 8-in-1 Welder package include a Spool Gun or TIG Torch, and how do I weld aluminum?
No, the standard package does not include an external Spool Gun or Lift TIG Torch; these accessories must be purchased separately (compatible with standard WP-17V-35 TIG torches and LBT150 spool guns). However, the package does include a specialized Teflon Liner and U-groove drive rollers out of the box, allowing you to successfully perform dual-voltage Aluminum MIG welding using the stock 15AK MIG torch and 100% pure Argon shielding gas.
