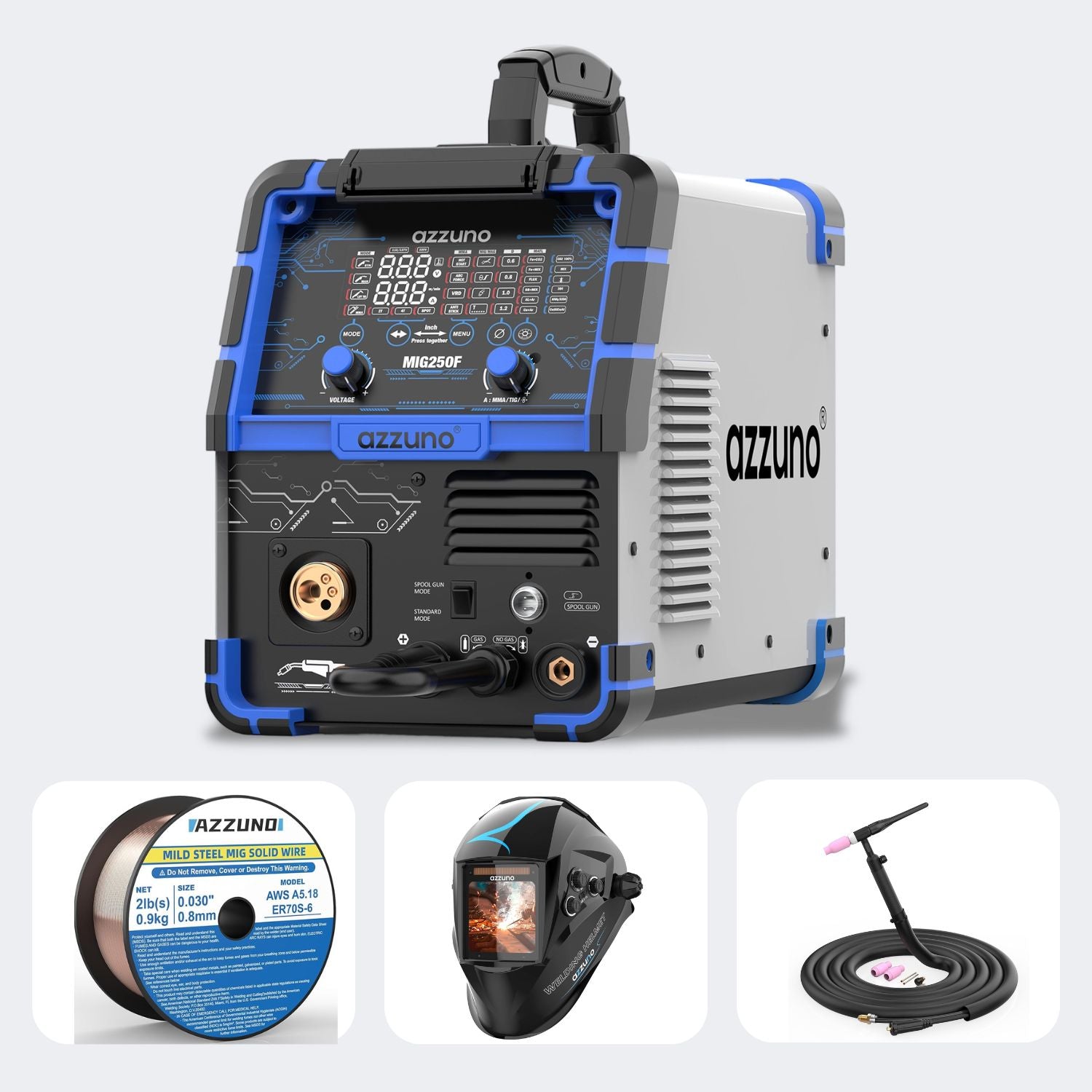

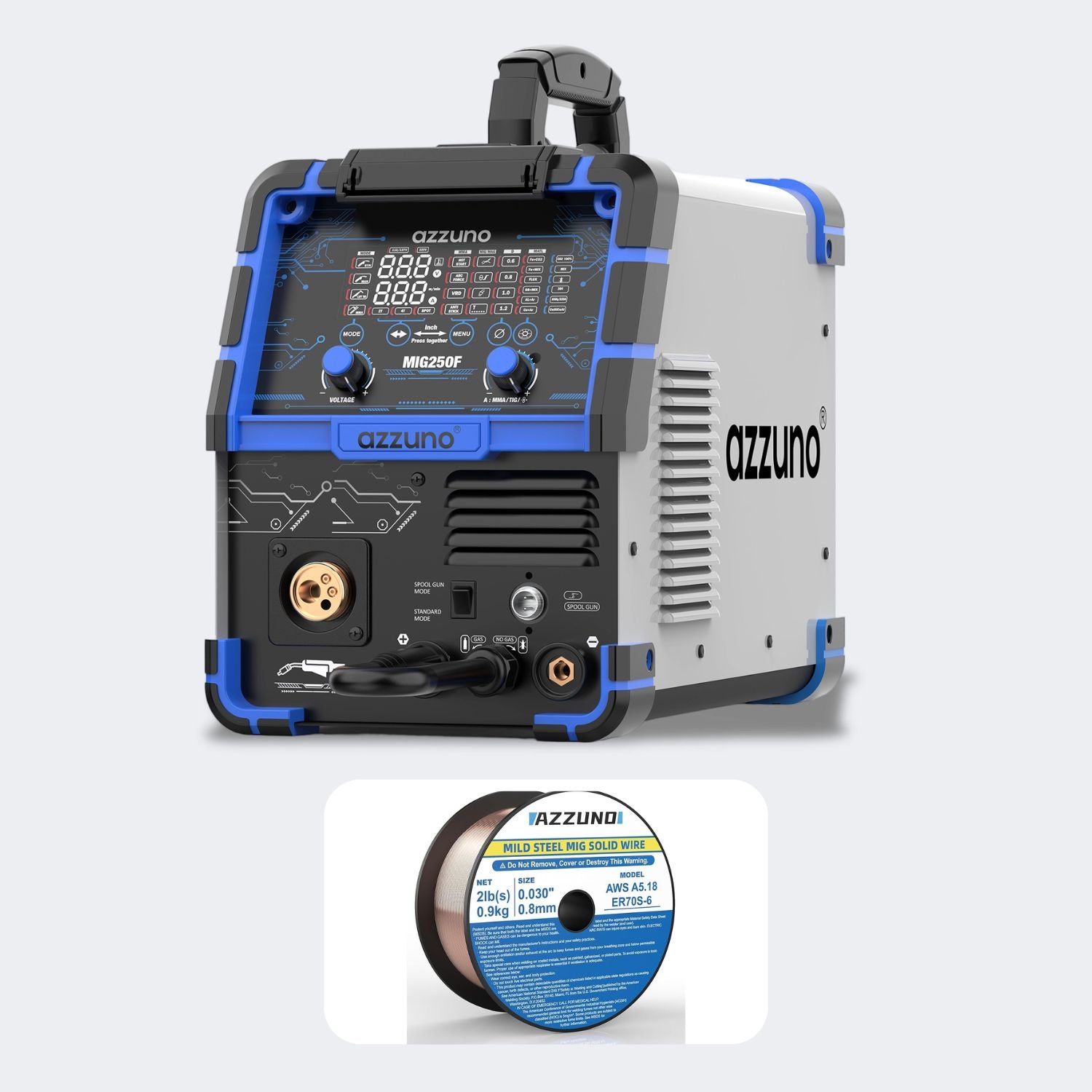

Azzuno Aluminum 250A 6 in 1 110V/220V MIG Welder
- 6‑in‑1 multi‑process: Gas MIG, gasless flux‑core MIG, spool‑gun MIG, Stick (MMA), Lift TIG, and Spot welding in one machine.
- True dual‑voltage 110V/220V: Self‑sensing input lets you work from home power or higher‑output shop circuits.
- Up to 250A welding output: Enough headroom for thicker sections and more demanding projects.
- Built for multi‑metal work: Configurations for mild steel, stainless steel, aluminum, and copper wire.
- Synergic + manual MIG: Choose between auto‑matched settings or full manual control.
- Aluminum‑ready design: U‑groove roller, dedicated liner option, and spool‑gun compatibility for smoother aluminum wire feeding.

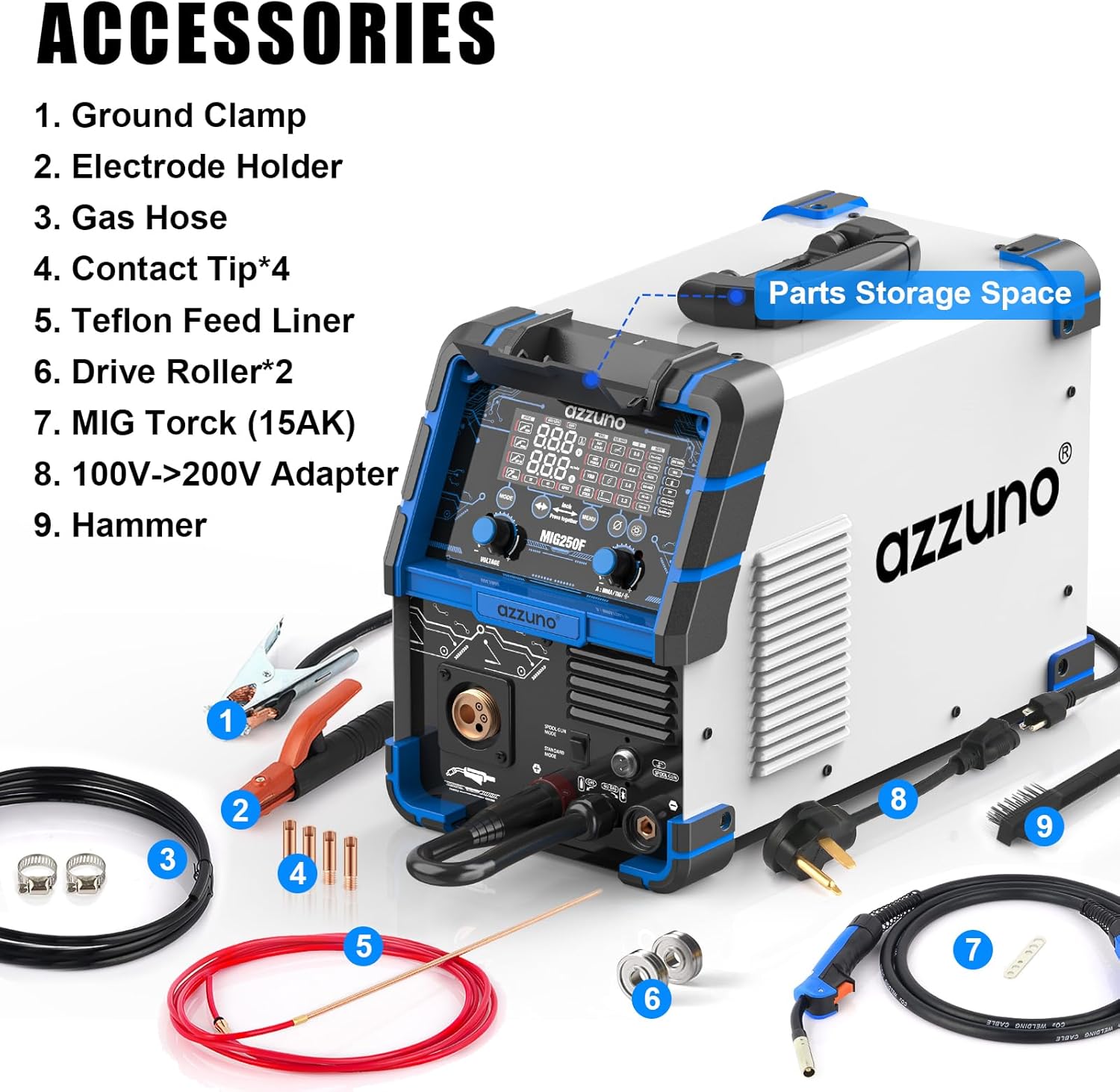

- MIG Welder
- MIG Torch (15AK)
- Hose Band*2
- Ground Clamp
- Gas Hose
- Teflon Feed Liner
- Electrode Holder
- Contact Tip*4
- Drive Roller*2
- 110V-200V Adapter
Orders Over $100
at azzunotools.com
MIG-250F Aluminum MIG Welder

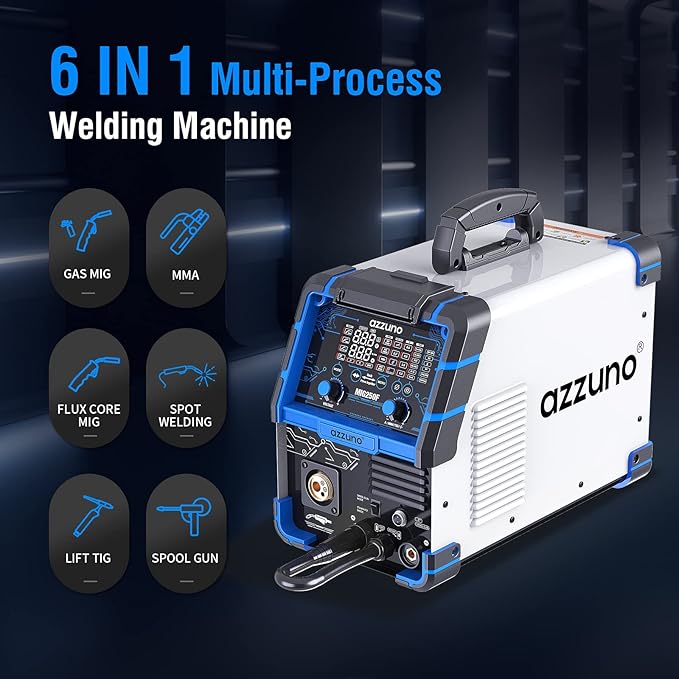

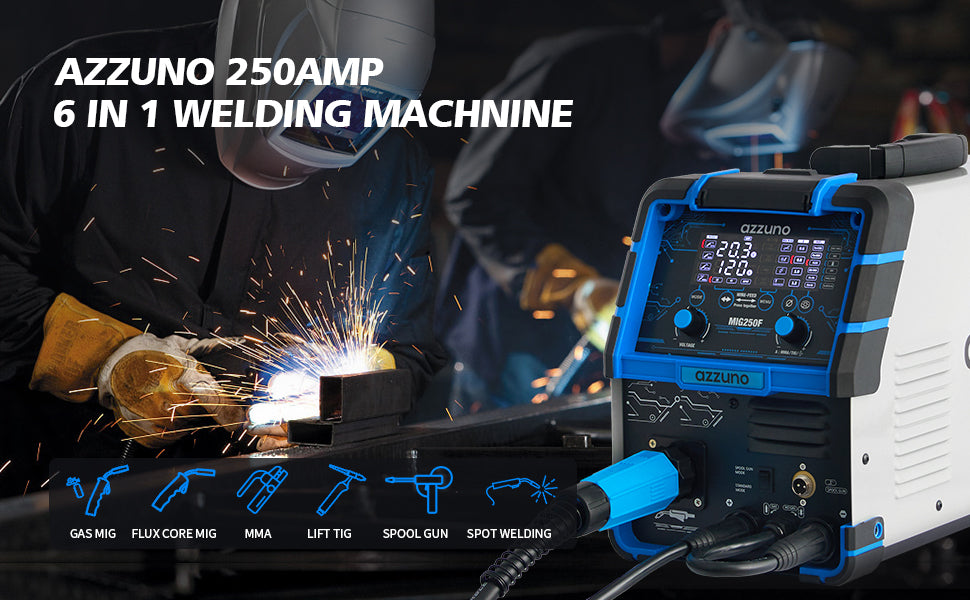

The AZZUNO 250A 6-in-1 Multi-Process Welder combines MIG, Flux Core MIG, Stick, Lift TIG, Spot Welding, and Spool Gun Aluminum Welding into one powerful machine. Designed for both beginners and professional welders.
Whether you're working on automotive repairs, farm equipment, fabrication projects, aluminum work, or general maintenance, the AZZUNO 250A delivers reliable power, smooth arcs, and professional-quality welds every time.

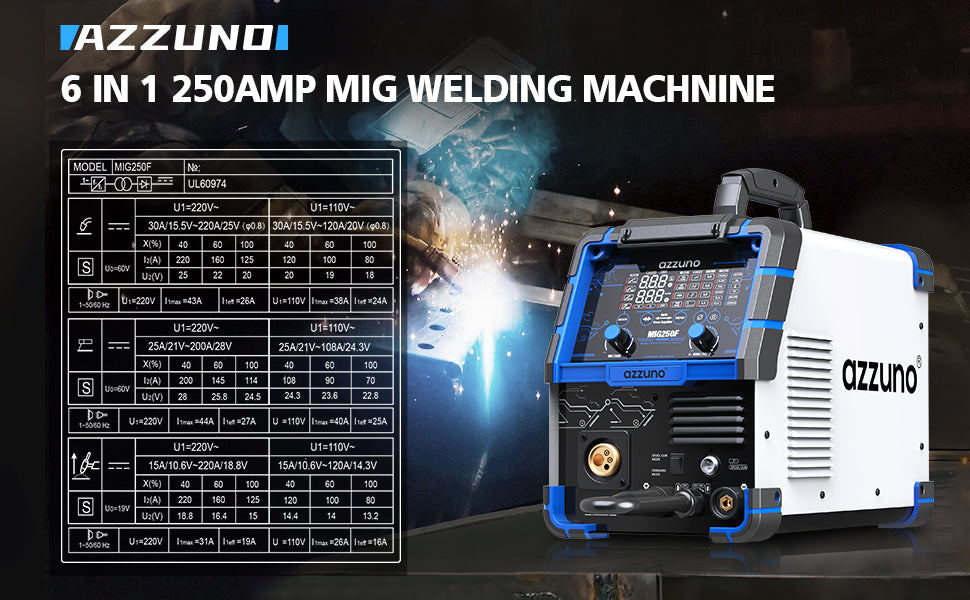

Performance Overview: Why Choose MIG-250F?
When aluminum is a regular part of your workflow, the MIG-250F 6-in-1 earns its place. With dual aluminum welding methods and 250 amps of output, it handles thicker aluminum sections that smaller machines can't touch — while still being compact enough for a home shop. MIG synergic and manual modes, stick, and lift TIG round it out for the steel work that fills the gaps between aluminum jobs.
110V / 220V Dual Voltage
Gas MIG, Gasless MIG, Lift TIG, Stick, Spot, Spool Gun
250A
50–250A
.023"–.035" solid / .030"–.035" flux core / .035"–.045" aluminum / .040" copper
60% @ 250A
Simply select the wire type and diameter, and the machine automatically matches the recommended voltage and wire feeding speed. The intelligent synergic system reduces setup time and helps achieve stable, consistent welds with less effort.
Professional MMA functions improve arc ignition, welding stability, and safety. Hot Start makes striking an arc easier, Arc Force maintains a smooth weld, Anti-Stick prevents electrode sticking, and VRD enhances operator protection during operation.
Simply select the wire type and diameter, and the machine automatically matches the recommended voltage and wire feeding speed. The intelligent synergic system reduces setup time and helps achieve stable, consistent welds with less effort.
Professional MMA functions improve arc ignition, welding stability, and safety. Hot Start makes striking an arc easier, Arc Force maintains a smooth weld, Anti-Stick prevents electrode sticking, and VRD enhances operator protection during operation.

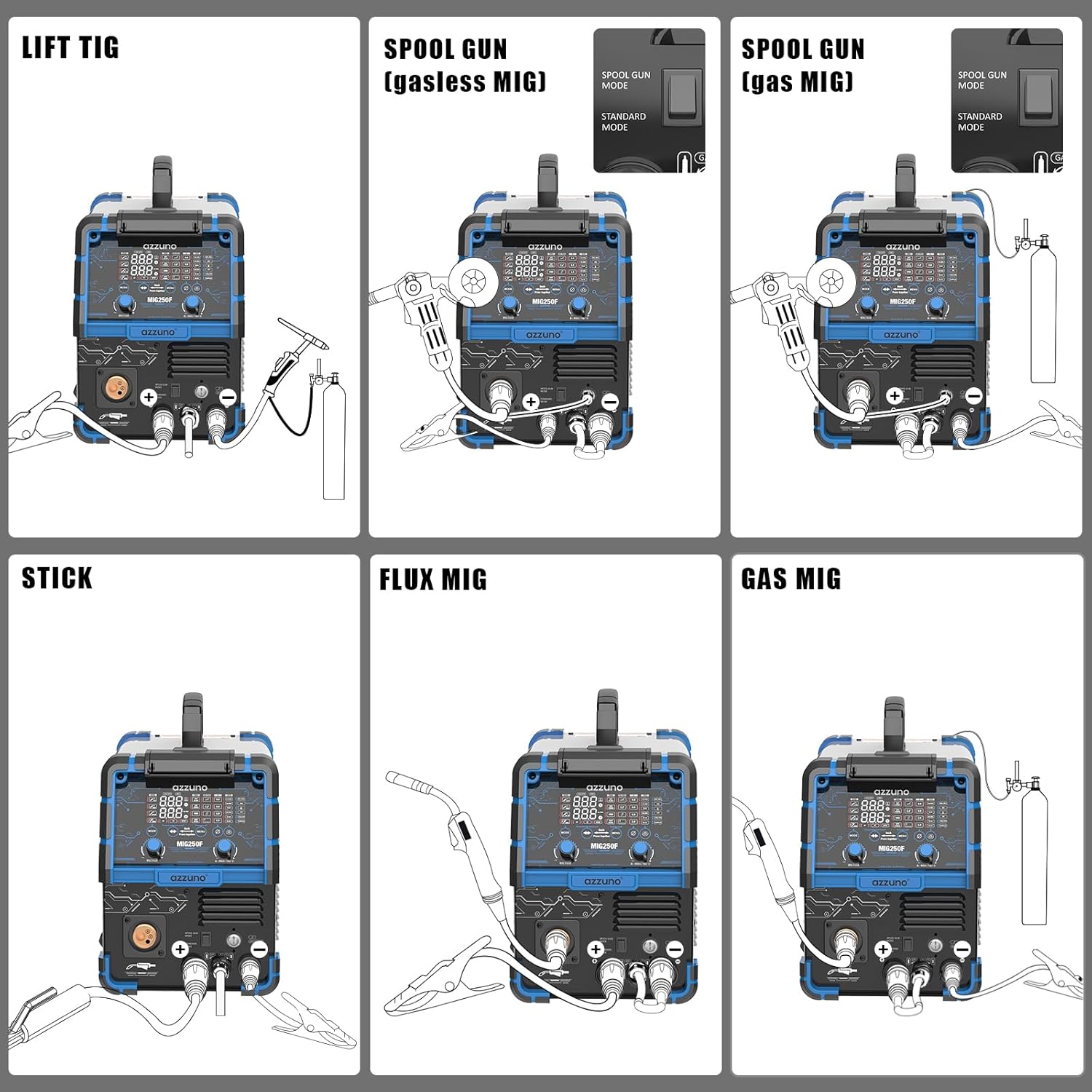

The AZZUNO 250A supports multiple MIG welding modes including Gas MIG, Flux Core MIG, and Spool Gun Aluminum MIG. Whether you're working on clean indoor fabrication or outdoor repair work, you can easily switch between gas-shielded MIG and gasless flux core MIG for maximum flexibility. With spool gun compatibility, aluminum welding becomes smooth and stable, reducing wire feeding issues and improving overall performance.

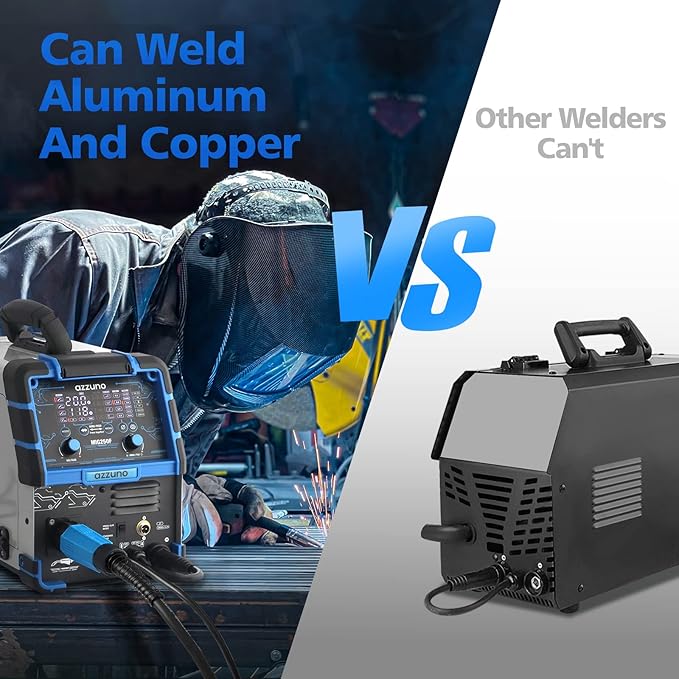

Designed to weld Copper, Mild Steel, Iron, Aluminum, Stainless Steel, and Sheet Metal. From automotive body panels and farm equipment to aluminum fabrication and workshop repairs, the AZZUNO 250A is ready for a wide range of welding applications
The AZZUNO 250A supports multiple MIG welding modes including Gas MIG, Flux Core MIG, and Spool Gun Aluminum MIG. Whether you're working on clean indoor fabrication or outdoor repair work, you can easily switch between gas-shielded MIG and gasless flux core MIG for maximum flexibility. With spool gun compatibility, aluminum welding becomes smooth and stable, reducing wire feeding issues and improving overall performance.
Designed to weld Copper, Mild Steel, Iron, Aluminum, Stainless Steel, and Sheet Metal. From automotive body panels and farm equipment to aluminum fabrication and workshop repairs, the AZZUNO 250A is ready for a wide range of welding applications
Who It’s For
The MIG‑250F is designed for users who want one welder to cover most of their metal work:
- DIY and serious hobbyists who work with steel, stainless, and aluminum.
- Auto repair and fabrication users who need both steel bodywork and aluminum jobs.
- Small shops and light fabrication businesses that want to avoid buying separate welders for different metals.
- Anyone who wants a single, flexible machine instead of a bench full of single‑process units.

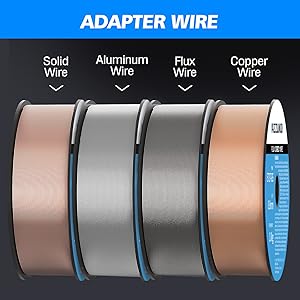

Suitable for Various Welding Wire
- .023”/.030”/.035” solid wire
- .030”/.035” flux core wire
- .035”/.040”/.045” aluminum wire
- .035”/.040” copper wire
- Suitable for all kinds of welding requirements

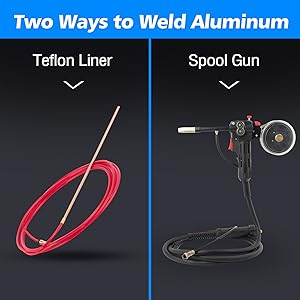

Two Ways to Weld Aluminum
- Install the teflon liner in the MIG gun to weld aluminum.

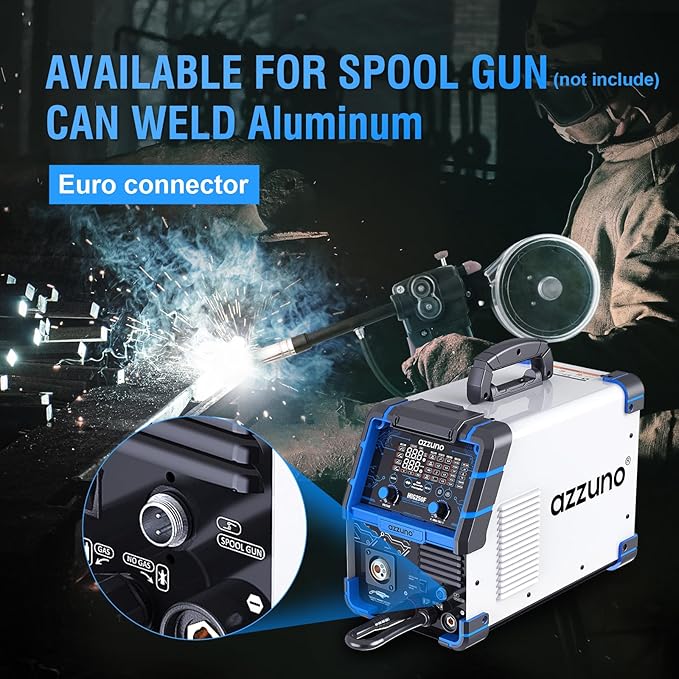

- Use Spool gun to weld aluminum (not included).Spool gun torch with 2-pin aviation plug.
- Use “U” type drive roll for Aluminum welding wire.
- Please note that this machine cannot perform TIG welding on aluminum.

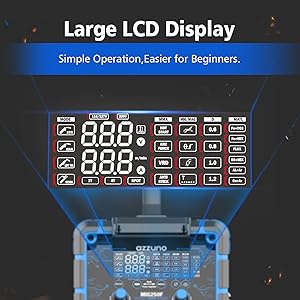

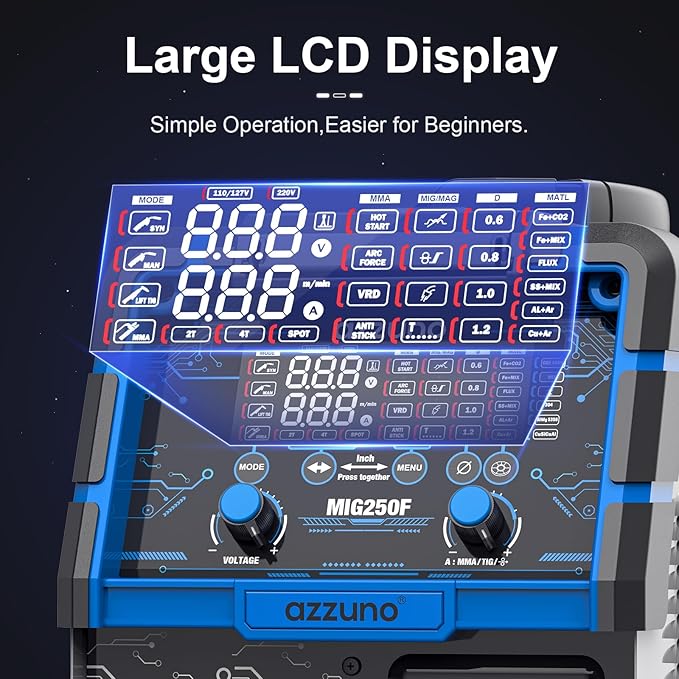

Large LCD Display
- High-end LCD screen design,provide you with accurate data display.
- Very easy to operate, ideal for home DIY and industrial work.

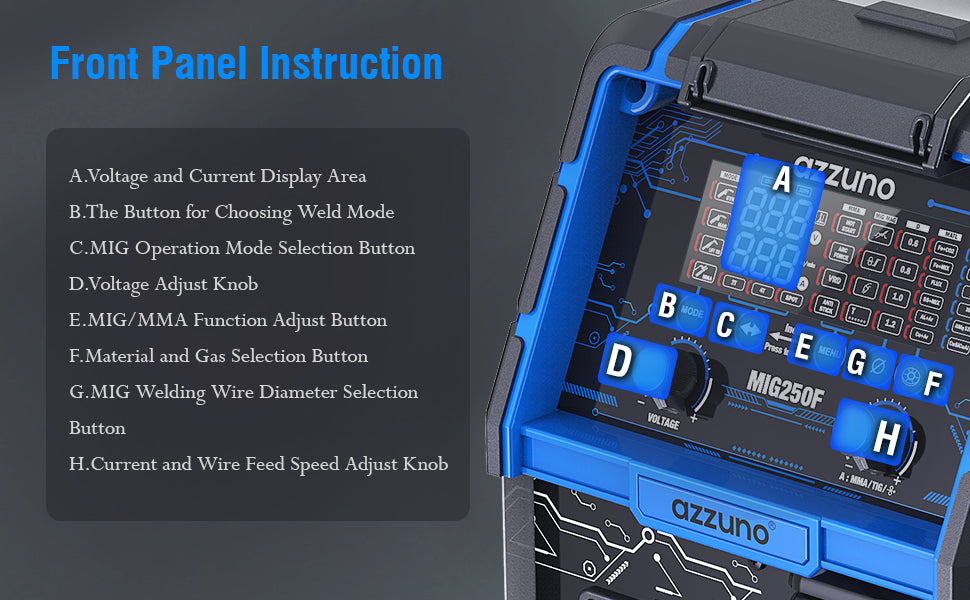

Front Panel Instruction
- A:The voltage and current display area:When you adjust the current and voltage, you can look at this screen to adjust the data you want.
- B:Welding Model Selection:Press the button switching welding modes,selecting MIG(Manual),MIG(Synergy),Stick(MMA),lIFT TIG welding functionality.
- C:MIG Operation Mode Selection: Press the button switching 2T/4T or Spot welding.
- D:Voltage Adjust Knob；Welding voltage can be adjust from 10-27.5V under manual MIG.Welding voltage will ve auto fitted after welding ampere is input under synergic MIG,can micro adjust from ±3V.
- E:MIG/MMA Function Switch Button:In MMA mode,press the button switching HOT START, ARC FORCE,VRD and ANTI STICK. In MIG mode, press the button switching Inductance,Slow speed wire feeding control, Post flow control,Spot welding time.
- F:Material and Gas Selection Button: Press the buuton switching welding data according to the material you going to welding and the gas type you use.
- G:Welding Wire Diameter Selection:Press the button switching welding wire diameter.
- H:Current and Wire Feed Speed Adjust Knob:Adjust the wire feed speed/ current.
| Model | Core Welding/Cutting Processes | Output Range & Voltage | Wire & Consumable Compatibility | Feature | Best For |
|---|---|---|---|---|---|
| Azzuno MF-200L | Pulse MIG, Gas/Gasless MIG, TIG, Stick, Plasma Cut | 30A-200A (MIG) / 10A-200A (TIG) / 40A (Cut) | 0.030"(0.8mm) / 0.035"(0.9mm) | 1-11 lbs Spool | Single/Double Pulse MIG & Integrated HF Plasma Cutter | Premium aluminum MIG pulse welding, clean plasma cutting & ultimate multi-process shop versatility |
| Azzuno MF-160PRO | Pulse MIG, Gas/Gasless MIG, TIG, Stick, Plasma Cut | 30A – 160A (15-40A Cut) | 110V/220V Dual | 0.030"(0.8mm) / 0.035"(0.9mm) | 2 lbs Spool | Compact Single Pulse MIG & Built-in Pilot Arc Cutter | Highly portable DIY pulse aluminum welding and light-duty garage metal fabrication |
| 👉 Azzuno MIG-250F | MIG (Gas/Gasless), Spool Gun Ready, TIG, Stick | 50A – 250A | 110V/220V Industrial Dual | 0.030" – 0.040" (0.8-1.0mm) | 2-11 lbs Spool | Heavy-Duty Dual-Drive Feed & Graphite/Teflon Liner | High-amperage structural steel, thick plate fabrication & dedicated spool gun aluminum tasks |
| MIG-200PRO | MIG, Gasless Flux Core, Lift TIG, Stick, Spool Gun Ready | 30A – 200A | 110V/220V Dual Voltage | 0.030"(0.8mm) / 0.035"(0.9mm) | 2-11 lbs Spool | Full Digital Synergic Control & Mode Memory Recall | Comprehensive multi-process home shop setups spanning standard steel to light aluminum |
| Azzuno MIG-200F | Gas MIG, Gasless Flux Core, Lift TIG, Stick | 40A – 200A | 110V/220V Dual Voltage | 0.030"(0.8mm) / 0.035"(0.9mm) | 2-11 lbs Spool | Classic Manual Parameter Tuning & High Duty Cycle | Traditional welding operators prioritizing robust analog control and deep carbon steel penetration |
| Azzuno MIG-135F | Gasless Flux Core MIG Only, Lift TIG, Stick | 20A – 135A | 110V/120V Household Only | 0.030" (0.8mm) / 0.035" (0.9mm) | 2 lbs Spool Only | Smart Amp/Volt Auto-Match & Lightweight Inverter | Hobbyist DIY maintenance, outdoor windy environments & 110V standard garage projects |
FAQ
Q1: What metals can the Azzuno 250A welder handle?
Yes, the Azzuno MIG-250F is specifically engineered for multi-material versatility. It delivers professional performance on aluminum, copper, stainless steel, alloy steel, and mild steel. For aluminum welding, the machine features dedicated hardware optimization, including a specialized U-groove roller, appropriate Teflon liner setups, and native compatibility with an external spool gun to ensure stable wire feeding and minimal spatter.
Q2: What welding processes are supported?
The Azzuno 250A multi-process station integrates 6 essential metalworking capabilities into a single unit. It supports Gas-Shielded Solid Wire MIG, Gasless Flux-Core MIG (for outdoor operations), Stick/MMA, high-precision Spot Welding, Lift TIG arc starting, and extended Spool Gun operations.
Q3: What wire types and sizes are compatible?
The Azzuno MIG-250F offers comprehensive wire accommodation. It fully supports .023"/.030"/.035" Solid wire; .030"/.035" Flux-Core wire (for gasless projects); .035"/.040"/.045" specialized Aluminum wire; and .035"/.040" Copper wire to match diverse fabrication requirements.
Q4: Is it safe for continuous use?

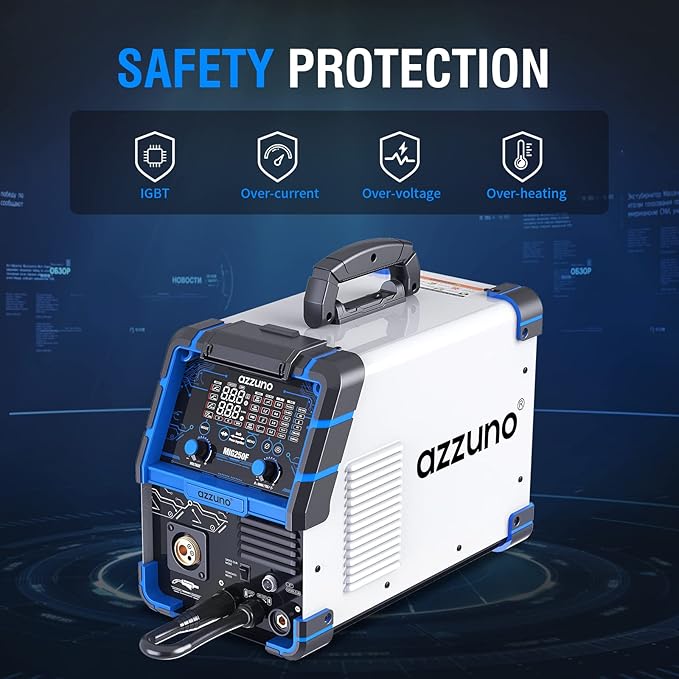

Yes. Built for demanding work environments, the Azzuno 250A is equipped with an advanced industrial cooling framework and intelligent safety multi-protection systems, which automatically safeguard the machine against overload, over-voltage, over-current, and overheating during prolonged operations.
Q5: Can beginners use this welder?
Yes. Despite its high industrial-grade power output, the Azzuno MIG-250F features an intuitive Digital Synergic Control System. This smart interface automatically synchronizes voltage and wire feeding speed based on material presets, allowing beginners and DIY hobbyists to easily achieve flawless, quality welds without manual parameter guessing.
Q6:Do I need 220V to use the full output?
Yes. The Azzuno MIG-250F is a flexible dual-voltage system operating on both 110V and 220V. While it performs exceptionally well on standard 110V for lighter tasks, a 220V power source is required to unlock the full 250A output capacity and leverage its robust 60% duty cycle at 220A for heavy-duty projects.
Q7:Is it suitable for a small fabrication shop?
Absolutely. The combination of a powerful 250A maximum output, a heavy-duty 60% duty cycle, multi-material optimization (especially for aluminum), and 6-in-1 process adaptability makes the Azzuno MIG-250F a highly dependable, cost-effective workstation for small fabrication shops, light-to-medium industrial manufacturing, and professional repair services.
Q8：What is the exact rated duty cycle of the Azzuno MIG-250F at maximum amperage?
The Azzuno MIG-250F delivers a 60% duty cycle at its maximum 250A output under 220V power for heavy-duty MIG welding, meaning it can operate continuously for 6 minutes out of a 10-minute period. Under continuous 100% duty cycle industrial demands, the output adjusts automatically to 193A. When operated on standard 110V household power, the maximum MIG current is limited to 120A with a stable 40% duty cycle.
Q9：Why does the Azzuno 250A support MIG aluminum welding but cannot perform TIG aluminum welding?
Aluminum welding via TIG requires an AC (Alternating Current) output to break through the stubborn aluminum oxide layer. Since the Azzuno MIG-250F utilizes a DC (Direct Current) inverter system, its Lift TIG function is strictly reserved for steel and stainless steel. For aluminum, the machine leverages DC MIG processes (via the included Teflon liner with U-groove rollers or an external Spool Gun), which effectively welds aluminum sections up to 1/4" using 100% pure Argon.
Q10：What are the best setup guidelines for welding aluminum with the included Teflon feed liner?
To weld aluminum without buying an extra spool gun, replace the stock steel liner inside the 15AK MIG torch with the included Teflon liner, and swap the drive roller to the "U" type groove matching your .035" or .045" aluminum wire. Keep the MIG torch cable as straight as possible during operation to prevent soft aluminum wire from bird-nesting, and ensure your shielding gas is set to 100% pure Argon (do not use mixed CO2).
