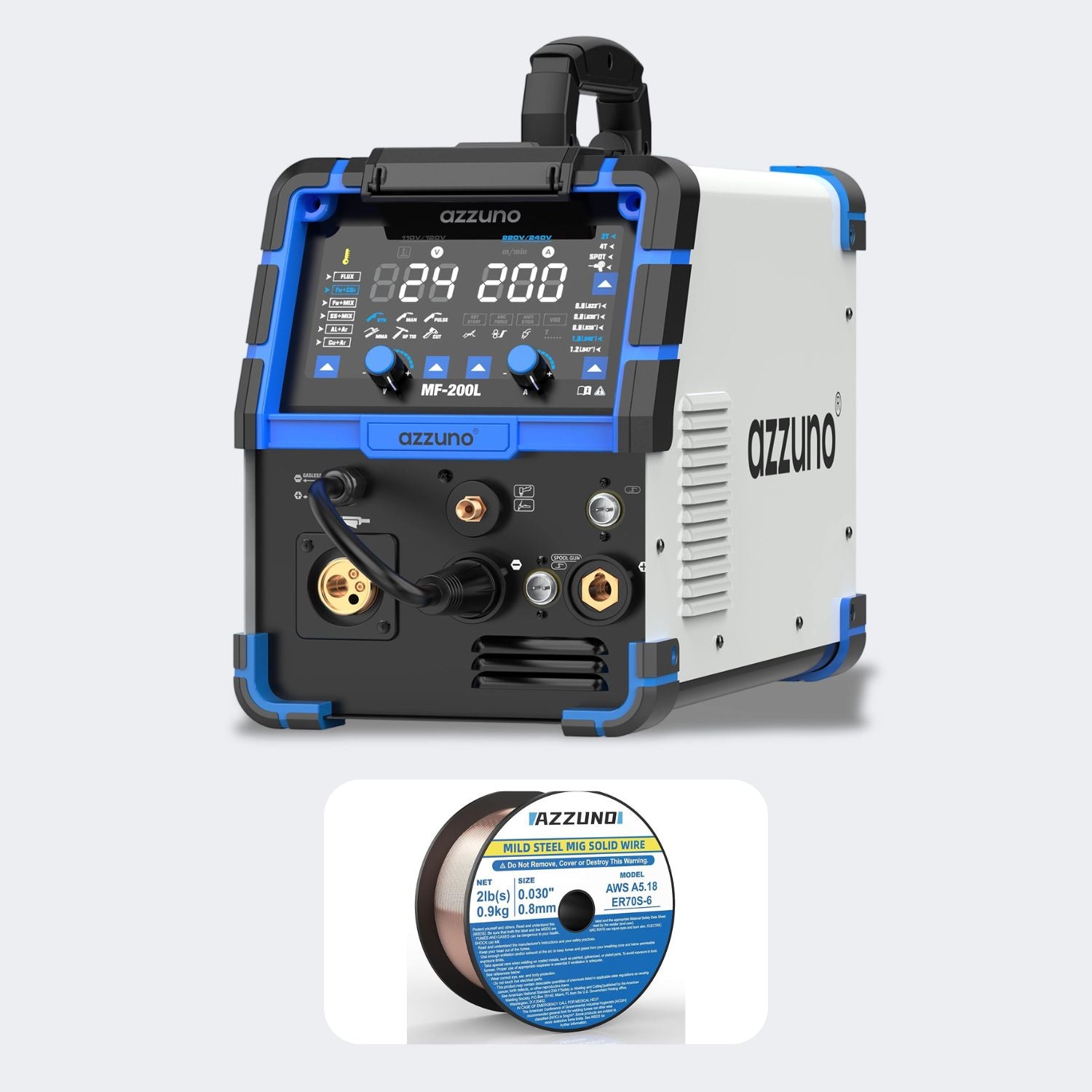

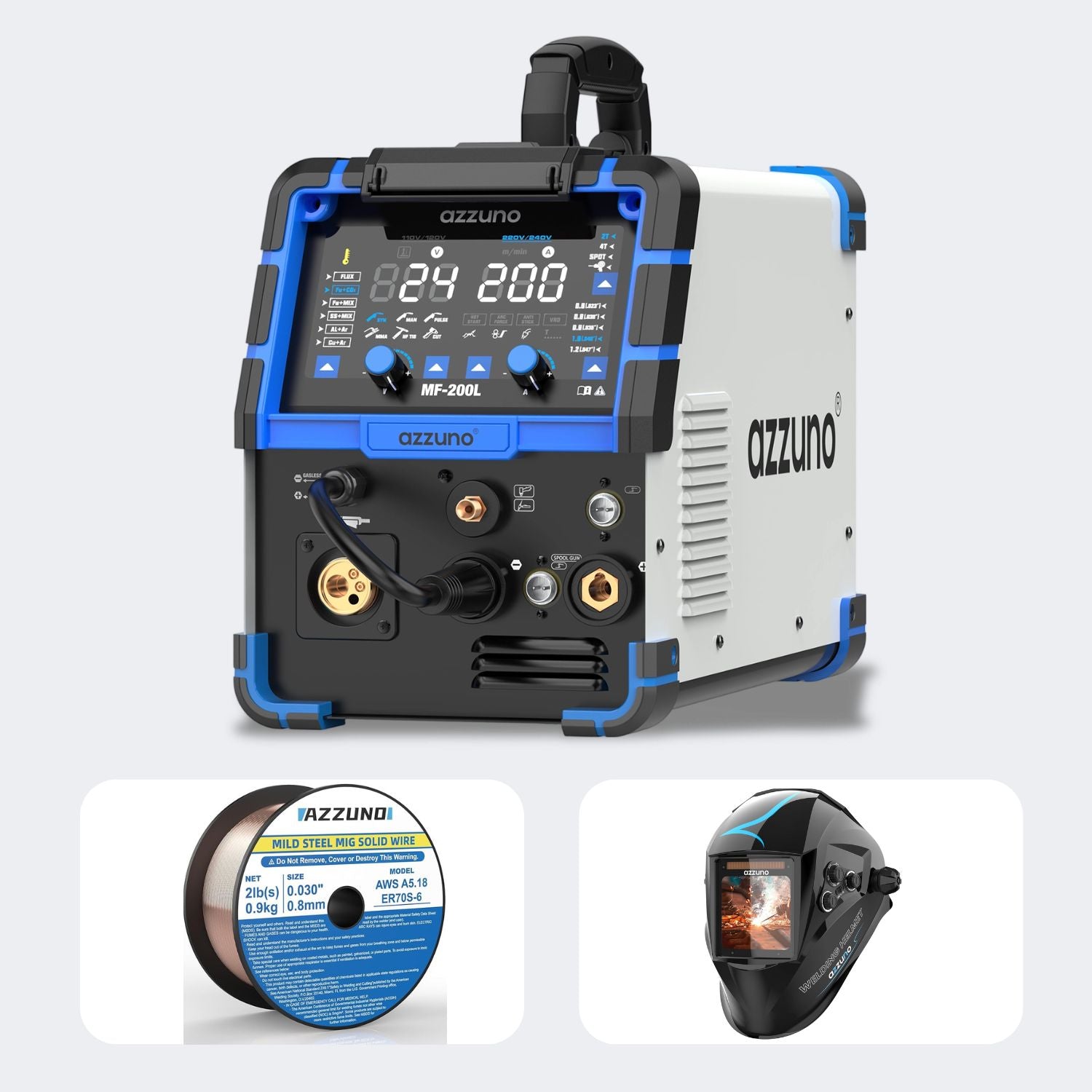

Azzuno MIG 200 All-in-One Pulse MIG Welder and Cutter Combo
- 9-in-1 all-in-one design.
- Pulse MIG, MIG, HF TIG, Stick, and Plasma Cutting.
- Compatible with steel, stainless steel, aluminum, and copper.
- Dual-voltage flexibility for more working environments.
Multi-function Welder Machine*1,
15AK MIG Torch*1,
Plasma Cutting Torch with Comsumables,
TIG Torch with Comsumables,
Air Filter Regulator*1,
Brush&Hammer*1,
Gas hose*2,
Ground Clamp*1,
Electrode Holder*1,
110V~220V Adapter*1,
Teflon Liner*1.
Orders Over $100
at azzunotools.com
Multifunctional Welder MF-200L
The AZZUNO 200A Plasma Cutter Welder Combo is an all-in-one welding and cutting solution designed for home garages, fabrication shops, automotive repair, and metalworking applications. Integrating Gas MIG, Flux Core MIG, Pulse MIG, MAG, Spot MIG, HF TIG, Stick welding, and 40A Plasma Cutting into one compact machine, it delivers versatile performance for steel, stainless steel, aluminum, and copper projects.
Performance Overview: Why Choose MF-200L?
The Azzuno MIG 200 All-in-One Pulse MIG Welder and Plasma Cutter Combo is a professional-grade multi-process welding machine designed for industrial, commercial, and DIY applications. It combines MIG, TIG, Stick welding, and plasma cutting in a single unit, allowing users to handle steel, aluminum, stainless steel, and copper with high precision.
220V / 110V Dual Voltage

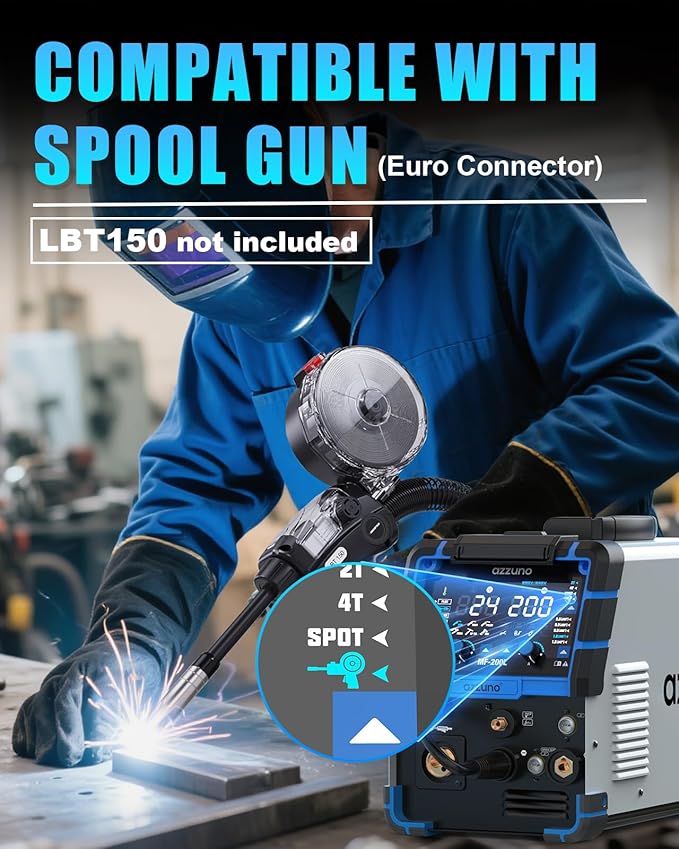

FLUX MIG, GAS MIG, PULSE MIG, MAG, SPOT MIG, PLASMA CUTTING, HF TIG, STICK welding, and SPOOL GUN compatibility.
MIG: 30–200A, TIG: 10–200A, Plasma: 40A
MAN, SYN, 2T, 4T, Spot
Solid: .023–.040", Flux Core: .023–.040", Aluminum: .035–.047", Copper: .040"
Ar, CO₂, Ar+CO₂
Standard: 3/8" (10mm), Max: 9/16" (14mm)
29 lbs (approx.)
19.5" × 9.5" × 12.5"

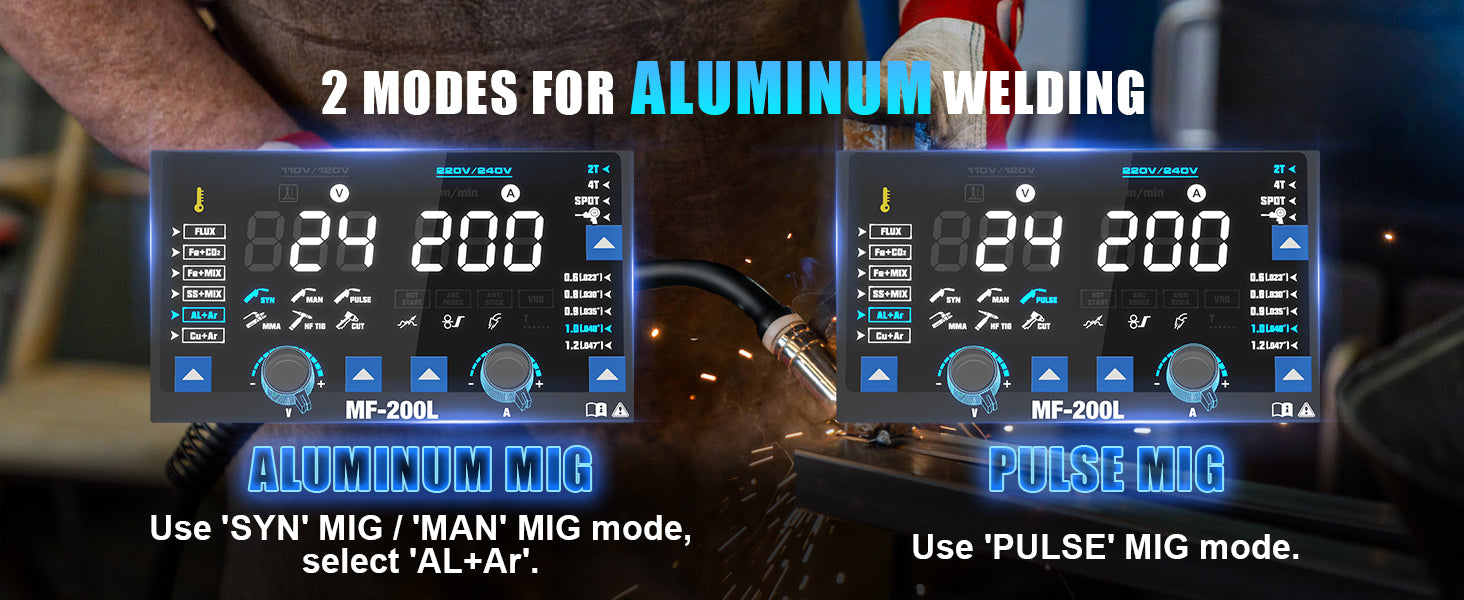

Aluminum MIG Welding
Supports two aluminum MIG welding modes. Use SYN MIG or MAN MIG mode with “AL+Ar” selection for standard aluminum welding, or use PULSE MIG mode for cleaner welds, lower spatter, and better arc control on thin aluminum materials.
MIG Functions
Supports Gas MIG, Flux Core MIG, Pulse MIG, MAG, Spot MIG, Manual MIG, and Synergic MIG welding. SYN mode automatically adjusts voltage and wire feed speed for stable welding performance, while 2T/4T modes improve comfort for short and continuous welding tasks.

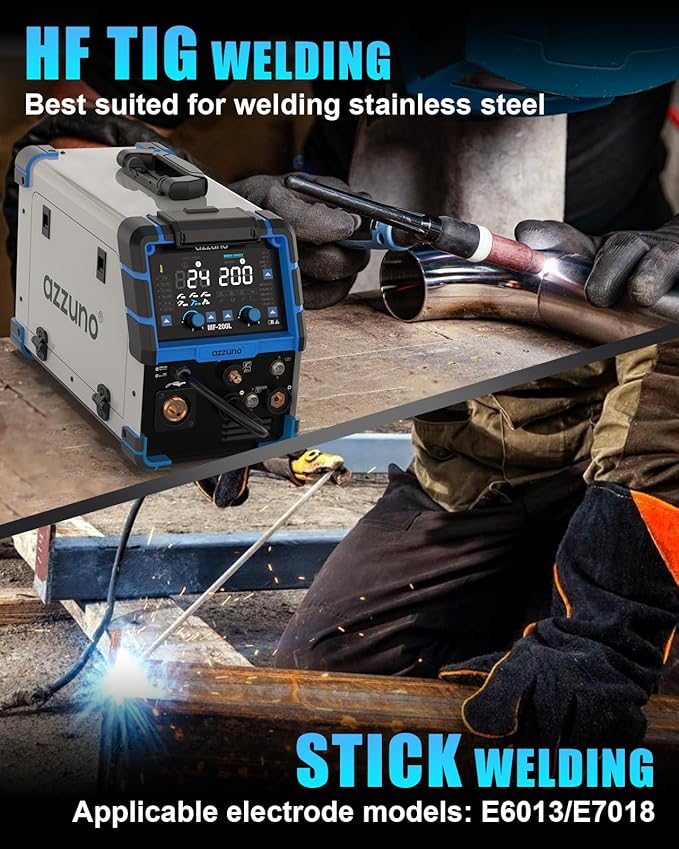

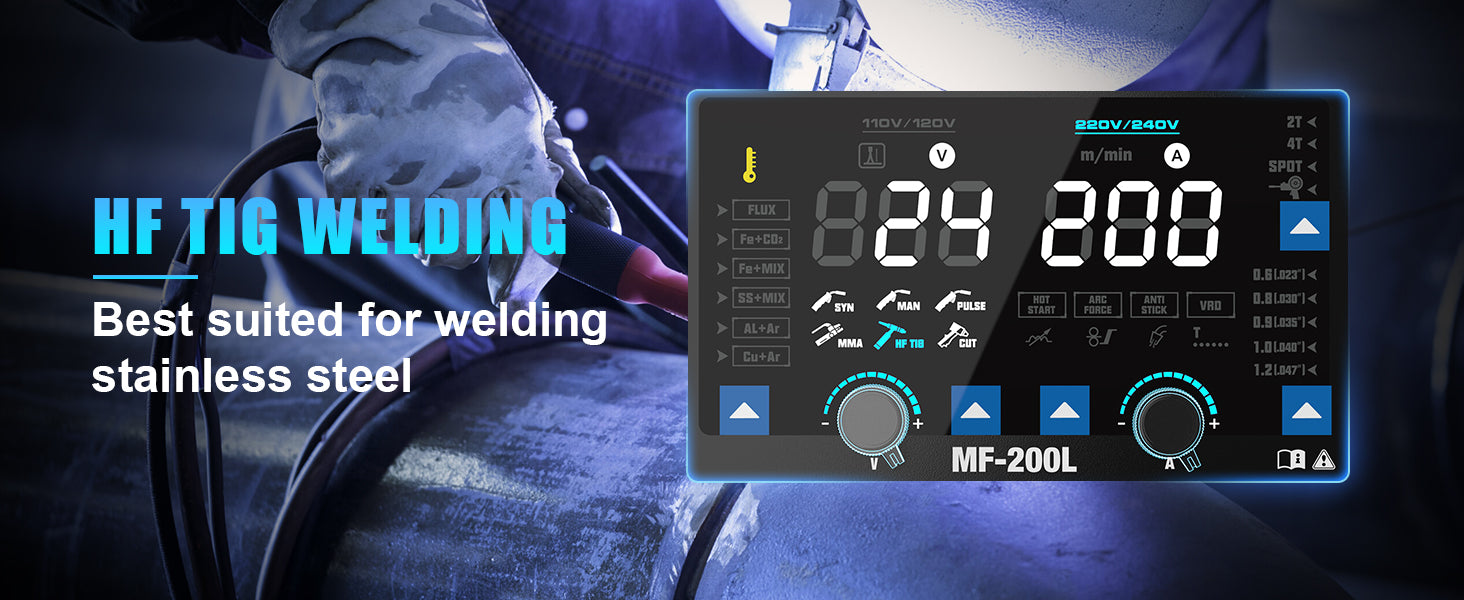

TIG Functions
Features High-Frequency TIG welding with non-contact arc start for cleaner ignition, stable arc performance, and reduced tungsten contamination. Ideal for stainless steel, mild steel, and precision fabrication work.

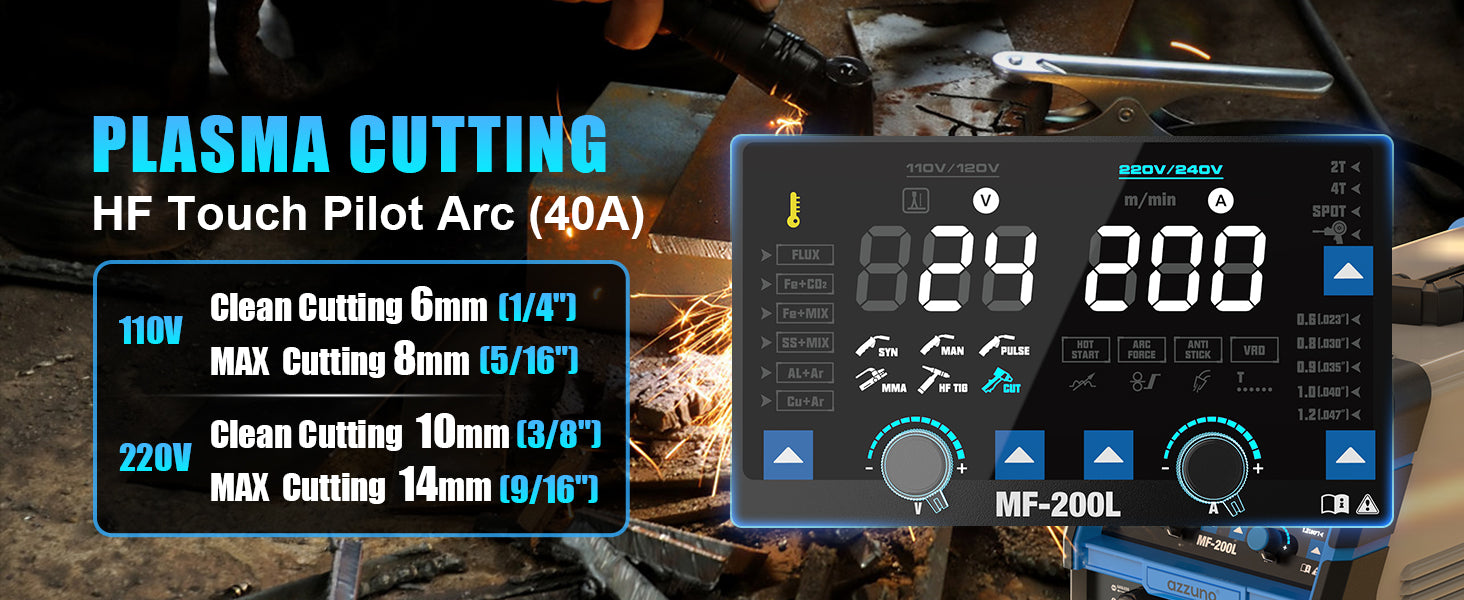

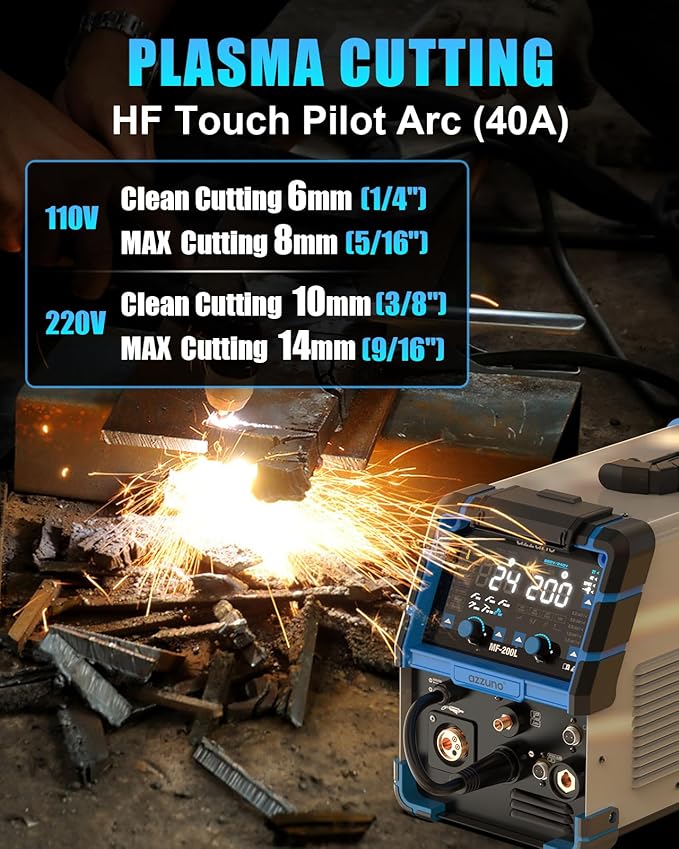

Plasma Cutting
The built-in 40A plasma cutter features HF Touch Pilot Arc technology for fast, precise cutting. Delivers clean cuts up to 10mm and maximum cuts up to 14mm at 220V on stainless steel, mild steel, aluminum, alloy steel, and copper.

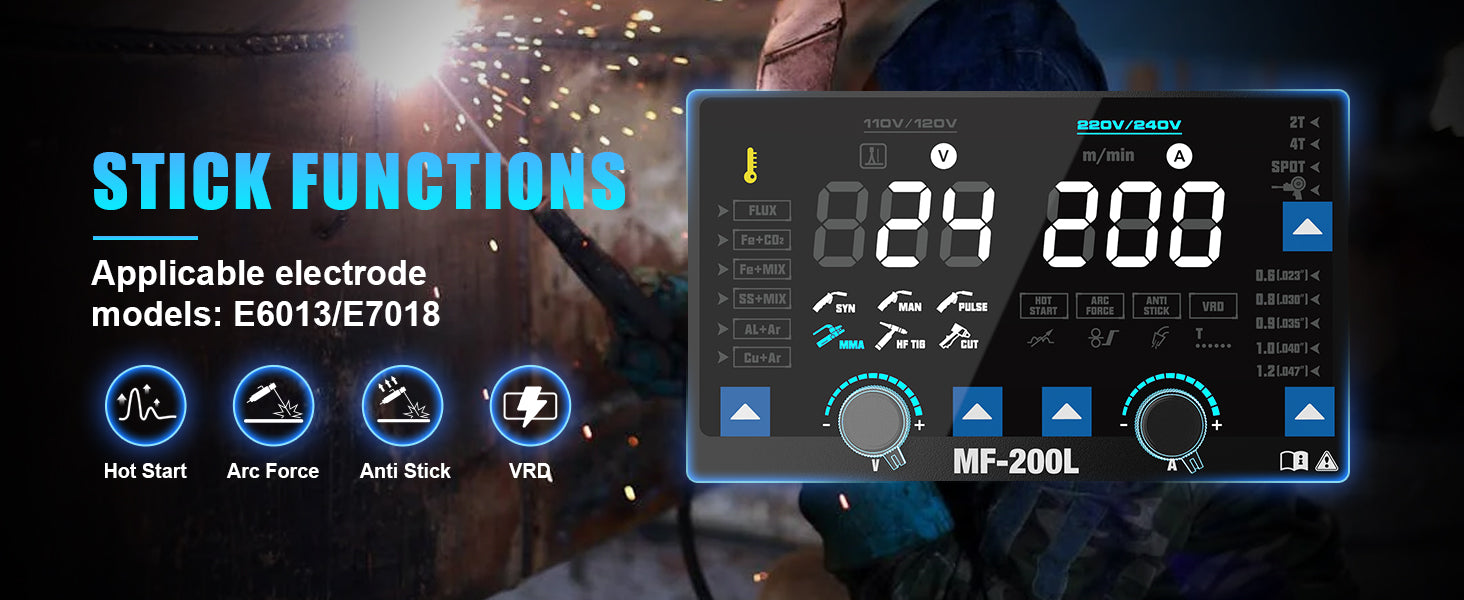

Stick Welding
MMA/Stick welding delivers stable current output and strong penetration for outdoor repair, heavy-duty fabrication, and maintenance work. Performs reliably on thicker and less-clean metal surfaces.

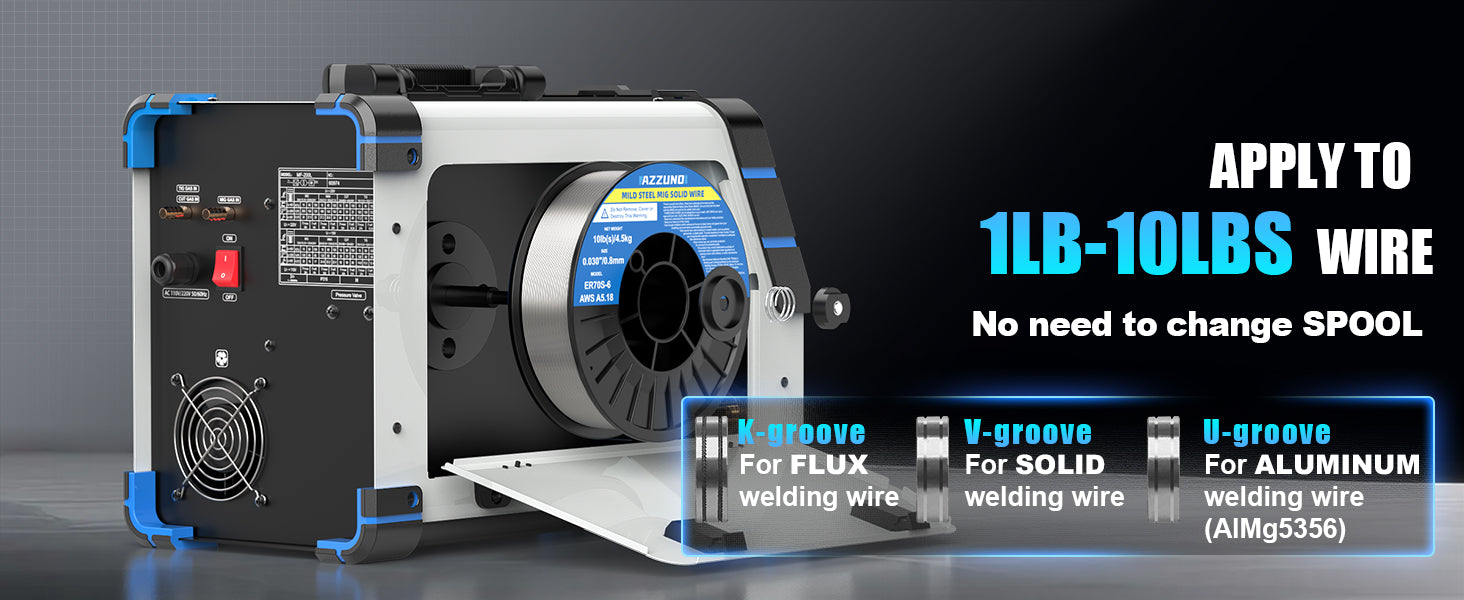

Suitable Drive Roller
Supports 1lb–10lb spools without changing spool. Includes K-groove for flux wire, V-groove for solid wire, and U-groove for aluminum wire (AIMg5356), ensuring stable wire feeding for MIG welding.
Best Use Cases
Automotive Repair
Ideal for body panels, brackets, support pieces, and light repair jobs.
Home Projects
Great for fences, frames, metal furniture, tool repairs, and general maintenance.
Light Fabrication
Suitable for custom parts, small structures, and workshop work.

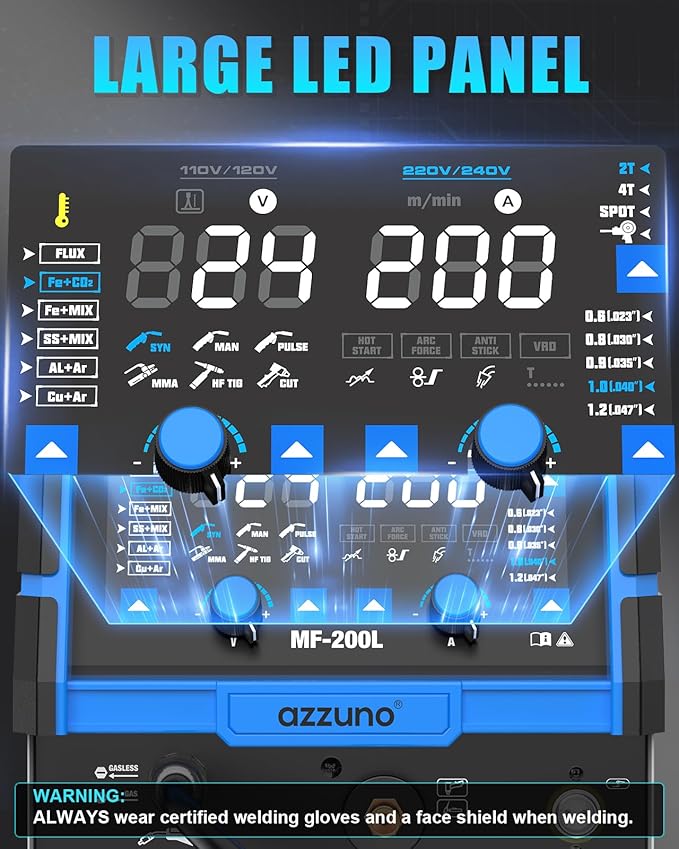

Digital Display & Smart Control Panel
The AZZUNO 200A welder features a modern digital control panel designed for fast setup, precise adjustment, and easy process switching. Designed for both beginners and experienced welders, the panel simplifies parameter adjustment while maintaining professional-level control.
LARGE LED DISPLAY
PANEL INTRODUCTION
CONNECTIONS
SPECIFICATIONS
ACCESSORIES
| Model | Core Welding/Cutting Processes | Output Range & Voltage | Wire & Consumable Compatibility | Feature | Best For |
|---|---|---|---|---|---|
| 👉 Azzuno MF-200L | Pulse MIG, Gas/Gasless MIG, TIG, Stick, Plasma Cut | 30A-200A (MIG) / 10A-200A (TIG) / 40A (Cut) | 0.030"(0.8mm) / 0.035"(0.9mm) | 1-11 lbs Spool | Single/Double Pulse MIG & Integrated HF Plasma Cutter | Premium aluminum MIG pulse welding, clean plasma cutting & ultimate multi-process shop versatility |
| Azzuno MF-160PRO | Pulse MIG, Gas/Gasless MIG, TIG, Stick, Plasma Cut | 30A – 160A (15A-40A Cut) | 110V/220V Dual | 0.030"(0.8mm) / 0.035"(0.9mm) | 2 lbs Spool | Compact Single Pulse MIG & Built-in Pilot Arc Cutter | Highly portable DIY pulse aluminum welding and light-duty garage metal fabrication |
| Azzuno MIG-250F | MIG (Gas/Gasless), Spool Gun Ready, TIG, Stick | 50A – 250A | 110V/220V Industrial Dual | 0.030" – 0.040" (0.8-1.0mm) | 2-11 lbs Spool | Heavy-Duty Dual-Drive Feed & Graphite/Teflon Liner | High-amperage structural steel, thick plate fabrication & dedicated spool gun aluminum tasks |
| MIG-200PRO | MIG, Gasless Flux Core, Lift TIG, Stick, Spool Gun Ready | 30A – 200A | 110V/220V Dual Voltage | 0.030"(0.8mm) / 0.035"(0.9mm) | 2-11 lbs Spool | Full Digital Synergic Control & Mode Memory Recall | Comprehensive multi-process home shop setups spanning standard steel to light aluminum |
| Azzuno MIG-200F | Gas MIG, Gasless Flux Core, Lift TIG, Stick | 40A – 200A | 110V/220V Dual Voltage | 0.030"(0.8mm) / 0.035"(0.9mm) | 2-11 lbs Spool | Classic Manual Parameter Tuning & High Duty Cycle | Traditional welding operators prioritizing robust analog control and deep carbon steel penetration |
| Azzuno MIG-135F | Gasless Flux Core MIG Only, Lift TIG, Stick | 20A – 135A | 110V/120V Household Only | 0.030" (0.8mm) / 0.035" (0.9mm) | 2 lbs Spool Only | Smart Amp/Volt Auto-Match & Lightweight Inverter | Hobbyist DIY maintenance, outdoor windy environments & 110V standard garage projects |
FAQ
Is this machine suitable for beginners?
Yes. The Azzuno MIG 200 All-in-One (Model: Azzuno MF-200L) is highly practical for beginners thanks to its intelligent SYNERGIC auto-adjust system, which automatically matches voltage and wire feeding speed. It offers a straightforward user interface for multi-process welding and cutting operations.
Does it support cutting as well?
Yes. The Azzuno MIG 200 All-in-One multi-process welder features a powerful 40A built-in Touch Pilot Plasma Cutting function, providing a comprehensive solution for both metal joining and demolition in a single Azzuno MF-200L unit.
What kind of projects is it best for?
The Azzuno MIG 200 All-in-One (Azzuno MF-200L) is engineered for extreme versatility, making it the best choice for automotive body repairs, DIY metalwork, light industrial fabrication, and home maintenance tasks across various metals.
Can this welder handle aluminum and stainless steel?
Yes. For precise aluminum welding, the Azzuno MIG 200 All-in-One (Azzuno MF-200L) supports triple modes: MIG SYN/MAN (with a Teflon liner setup), Single Pulse MIG (for minimal spatter), and Spool Gun compatibility. It also features High-Frequency (HF) TIG for highly accurate, non-contact stainless steel welding.
What is the maximum plasma cutting thickness?
When operating at 220V, the integrated plasma cutter in the Azzuno MF-200L delivers a 3/8" (10mm) clean cut and a maximum 9/16" (14mm) severance cut. It efficiently processes steel, stainless steel, aluminum, copper, and alloy metals.
What wire sizes and types are supported?
The Azzuno MIG 200 All-in-One welder is highly adaptable, supporting 1 lb to 10 lbs wire spools. Compatible sizes for the Azzuno MF-200L include .023"/.030"/.035"/.040" Solid and Flux Core wires; .035"/.040"/.047" ER5356 Aluminum wire; and .040" Copper wire.
Is this machine suitable for continuous welding tasks?
Yes. With integrated IGBT inverter cooling and advanced thermal protection, the Azzuno MF-200L features professional 2T and 4T MIG modes. The 4T mode allows continuous, long-distance welding without holding the trigger, while the SYNERGIC control system optimizes arc stability.
What safety precautions are needed?
Operators must ALWAYS wear certified welding gloves, a proper welding face shield, and ensure excellent ventilation. During MIG/MAG welding with the Azzuno MIG 200 All-in-One (Azzuno MF-200L), using the correct shielding gas (Pure Argon for Aluminum/TIG; Ar/CO2 or Ar+CO2 blends for steel) is mandatory. Using an incorrect gas can cause poor weld quality or serious injury.
What materials can the Azzuno MF-200L plasma cutter slice through, and what are the thickness limits?
The integrated 40A high-frequency plasma cutter delivers a 10 mm (3/8") clean cut and a 14 mm (5/8") maximum severance cut on mild steel under stable 220V power. For stainless steel, it achieves a clean cut up to 8 mm, and up to 6 mm for aluminum. It requires an external air compressor providing 60-70 PSI with a 4.5 CFM delivery.
Does the Azzuno MIG 200 pulse mode require 100% pure Argon for aluminum welding?
Yes. When utilizing the Pulse MIG mode for aluminum welding with .035" or .047" ER4043/ER5356 wire, you must use 100% pure Argon gas. Shielding gas mixtures like 75% Argon / 25% CO2 are strictly reserved for carbon steel welding and will cause severe porosity if used on aluminum.
Can the Azzuno MF-200L run continuously at 200A, and what is its duty cycle performance?
The Azzuno MF-200L features a professional-grade 60% duty cycle at its maximum 200A output under 220V. This means it can weld continuously for 6 minutes out of a 10-minute cycle at maximum power. For non-stop 100% duty cycle operation, the current should be adjusted to 154A or below.
