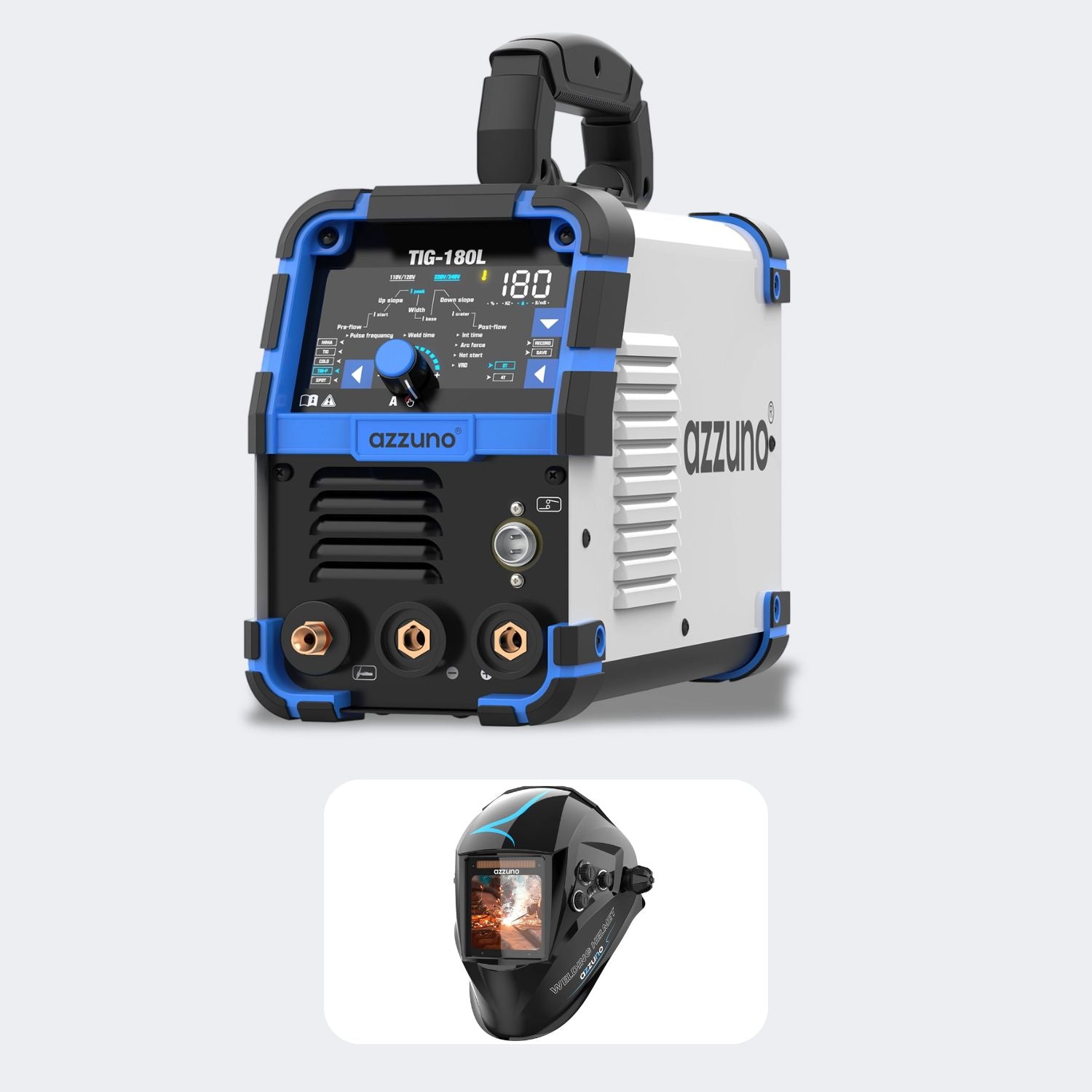

Azzuno TIG-180L DC TIG Spot Cold Welder
- 180A DC TIG welder with 5-in-1 TIG welding functions for precision applications.
- HF start TIG, Pulse TIG, Cold TIG, and Spot TIG for controlled, low-heat welding.
- Dual voltage 110V/220V for home use and light industrial welding.
- Memory function with up to 10 saved welding parameter presets.
- Large LED display for accurate control and real-time monitoring.
- Ideal for stainless steel, carbon steel, copper, and thin sheet welding,
- Stick welding capability for versatile outdoor and repair work.

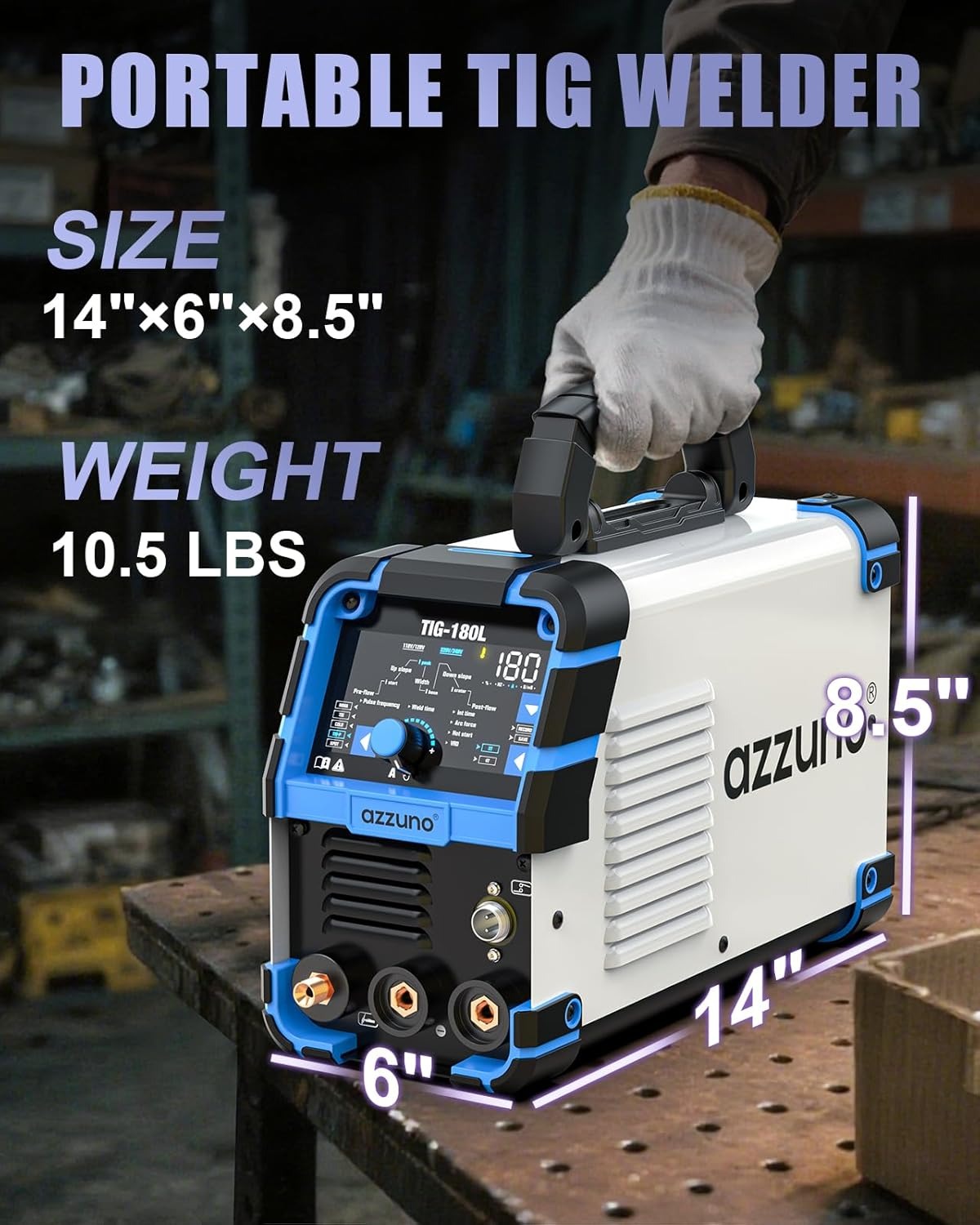

- Compact TIG welding machine designed for DIY users and professionals.

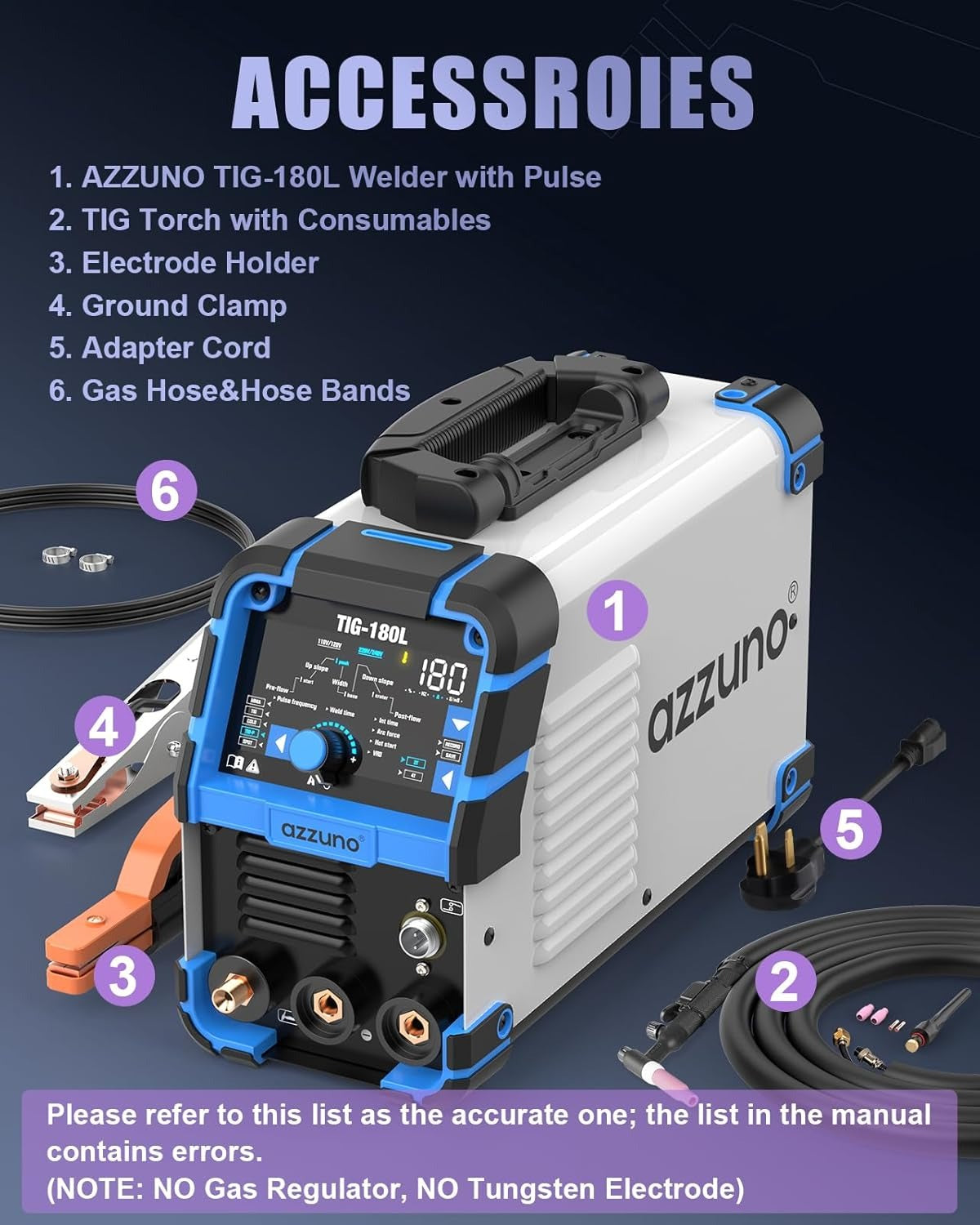

- TIG Welder×1,
- Electrode Holder×1,
- Ground Clamp×1,
- 110V~220V Adapter×1,
- Gas Hose×1,
- Hose Band×2,
- TIG Torch with Comsumables(Ceramic Cups*3, Collet*3, Collet Body*1, Long Back Cap*1, Short Back Cap*1)(
- NOTE: NO Gas Regulator, NO Tungsten Electrode)
Orders Over $100
at azzunotools.com
TIG Welding Machine Ideal for Stainless Steel
Elevate your craftsmanship with the Azzuno TIG-180L. Engineered for artisans and professionals, this 5-in-1 TIG powerhouse combines advanced Pulse and Cold Welding technologies with a high-performance 180A output. From intricate stainless steel art to heavy-duty carbon steel repairs, the TIG-180L delivers unmatched arc stability and aesthetic weld beads in every pass.
Performance Overview: Why Choose TIG-180L?
The Azzuno TIG-180L is a precision 5-in-1 DC TIG welder specifically engineered for thin sheet welding and aesthetic craftsmanship. It features advanced Cold TIG and Pulse TIG technologies to minimize heat-affected zones, preventing warping and discoloration on stainless steel and copper. Best For precision arts, exhaust pipe repair, and ultra-thin stainless steel work (as thin as 0.5mm).
TIG-180L
Cold TIG, Pulse TIG, HF TIG, Spot TIG, MMA/Stick
Dual Voltage 110V / 220V
10A - 180A (Precision Adjustable)
High-Frequency (HF) Non-contact Start
Cold Welding Technology (Low Heat Input)
10 User-defined Parameter Presets
Stainless Steel, Carbon Steel, Copper, Chrome Moly
Ultra-thin sheets (0.5mm) up to medium-duty plates
5-IN-1 TIG Welder
Ultimate Versatility for Every Project.
Unlock a complete suite of professional modes: DC HF TIG for standard tasks, PULSE for heat control, COLD TIG for ultra-thin sheets, and SPOT for rapid tacking. This 5-in-1 powerhouse adapts to Stainless Steel, Carbon Steel, and Copper, ensuring the perfect arc for any material.
Pro-Level TIG Functions
Precision Mastery for Thin Materials.
Go beyond standard welding. With specialized Pulse, Cold, and Spot TIG modes, you have total control over the arc and heat. Achieve stack-of-dimes beads on stainless steel and copper while virtually eliminating warping and discoloration—even on the most delicate workpieces.
Reliable Stick Welding
Versatile Power for Heavy-Duty Tasks.
When the job moves outside or involves thicker materials, the TIG-180L excels in MMA/Stick mode. Delivering a smooth, stable arc with easy-to-start ignition, it handles a wide range of electrodes to provide deep penetration and strong structural bonds on carbon steel and iron.
Smart Memory Function
One-Touch Recall for Peak Efficiency.
Stop wasting time on repetitive setups. Our intelligent Memory System allows you to save your top 10 favorite parameter combinations. Switch between different materials or thicknesses instantly, ensuring your most successful settings are always ready for the next job.

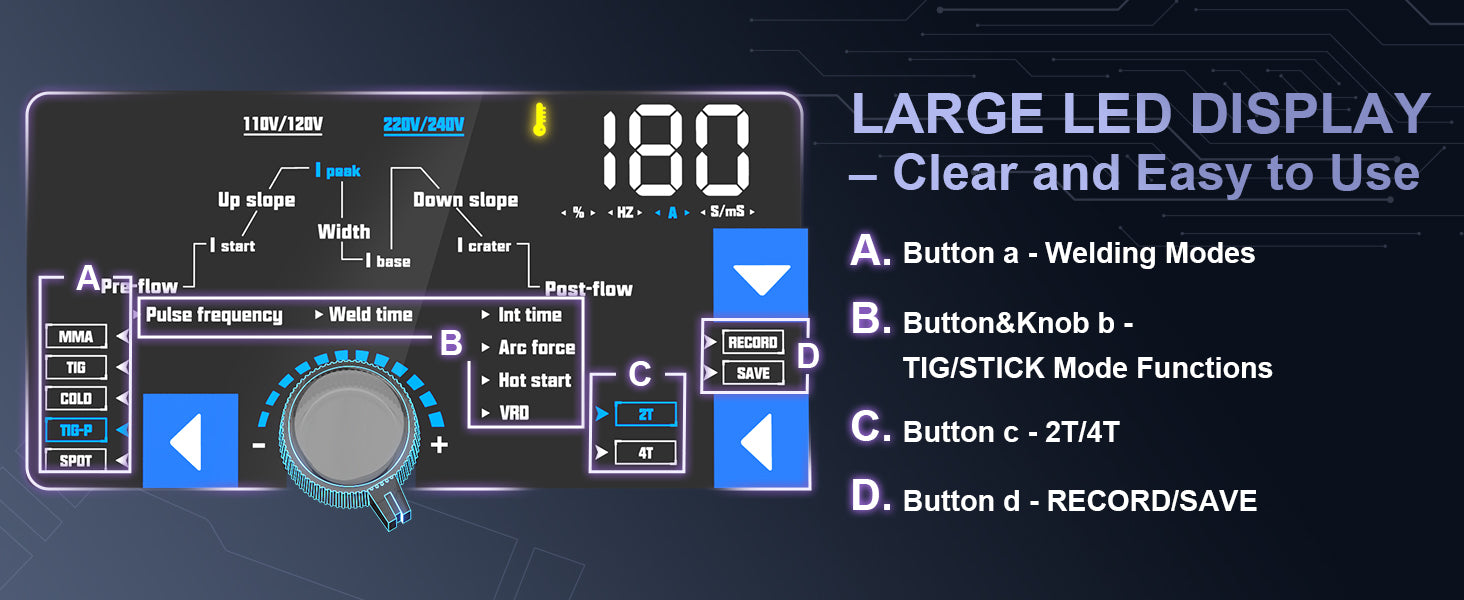

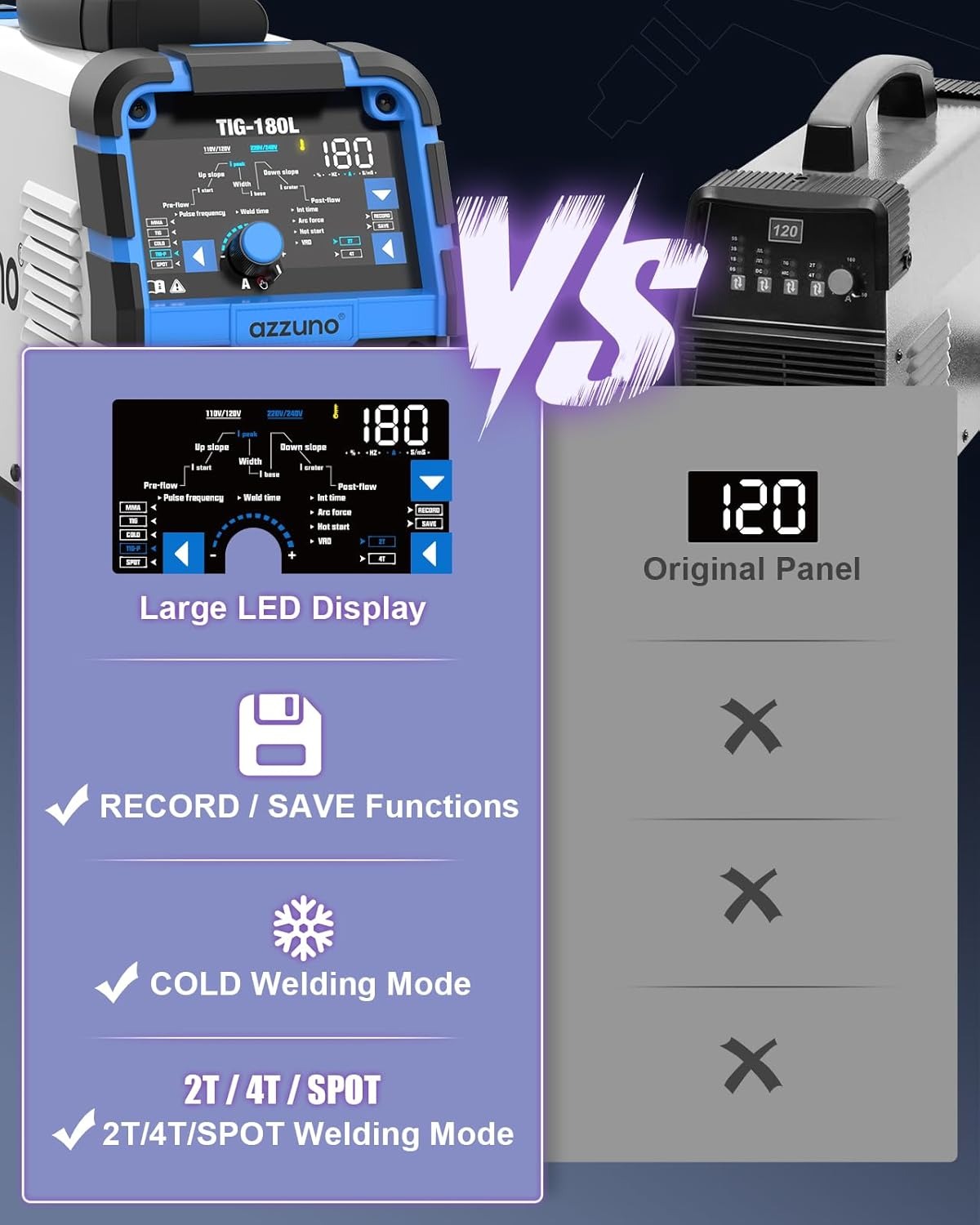

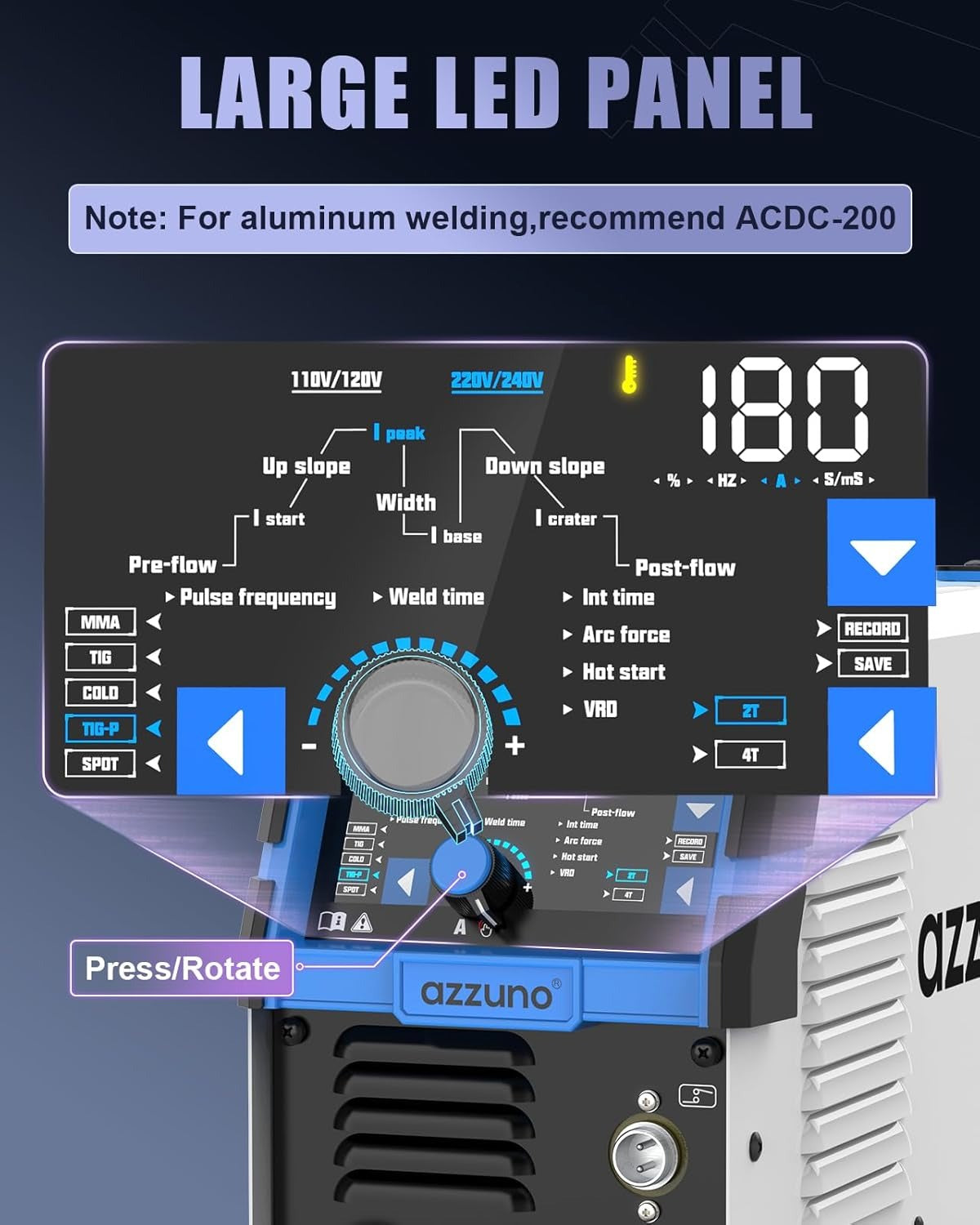

Smart Control Panel with Digital Display
Equipped with an intuitive control panel and a large LED display, this TIG welder allows precise adjustment of parameters such as current, pulse frequency, and waveform settings. The clear digital interface ensures easy operation, real-time monitoring, and enhanced accuracy for both beginners and professional welders.
Complete Welding System Overview
Connection
Specification
Welding Materials
Accessories
| Model | Welding/Cutting Processes | Current Type | Output Range | Feature | Max Cutting/Welding Thickness | Best For |
|---|---|---|---|---|---|---|
| Azzuno ACDC-200L | AC/DC TIG, Pulse TIG, Stick (MMA) | AC / DC (Alternating / Direct) | TIG 10-200A / STICK 20-160A (110V max 120A) | Square, Sine & Triangle AC Waveforms | 3/8" (9.5mm) on Carbon Steel / Aluminum | Aluminum fabrication, heavy-duty automotive restoration & TIG duty cycle tasks |
| Azzuno TIG-200L | DC TIG, Pulse TIG, Cold TIG, Stick (MMA) | DC Only (Direct Current) | TIG 20-200A / STICK 20-180A (110V max 120A) | 10-Channel Memory & DC Pulse Cold Mode | 0.02" (0.5mm) Thin Sheet up to 5/16" (8mm) | High-amperage stainless steel cold welding with silver "stack-of-dimes" beads |
| 👉 Azzuno TIG-180L | DC TIG, Spot Welding, Cold TIG, Stick (MMA) | DC Only (Direct Current) | TIG 10-180A / STICK 20-160A (110V max 110A) | Millisecond Low-Heat Precision Cold Mode | Optimized for Ultra-Thin Gauges down to 0.015" (0.4mm) | Ultra-precision thin-sheet metal assembly with zero thermal warping or discoloration |
| Azzuno CUT-65L | Plasma Cutting | DC Only (Direct Current) | 110V: 20A-35A / 220V: 20A-65A | Non-Touch Pilot Arc & 4.5-5.0 CFM @ 60–70 PSI Air Flow | 3/4" (20mm) Clean Cut; 1" (25mm) Severance | High-speed industrial cutting through rusted, painted, rough, or mesh expanded metals |
FAQ
Q1: Can the Azzuno TIG-180L weld thin stainless steel without discoloration?
Answer: Yes. By utilizing its advanced Cold TIG mode, the Azzuno TIG-180L delivers ultra-precise, millisecond-level energy bursts that drastically minimize the heat-affected zone (HAZ). This precise thermal management completely prevents the common "blueing", discoloration, or warping associated with standard TIG welding on thin gauge stainless steel sheets.
Q2: Does the Azzuno TIG-180L support 110V household outlets?
Answer: Yes. The Azzuno TIG-180L features an intelligent Dual Voltage (110V/220V) auto-sensing system. This design makes it fully compatible with standard 110V home garage outlets for light DIY maintenance, while allowing a seamless switch to 220V industrial power to unleash its stable maximum output.
Q3: Is the Azzuno TIG-180L suitable for welding aluminum?
Answer: No. The Azzuno TIG-180L is a DC-only (Direct Current) welding machine, meaning it is engineered for exceptional performance on stainless steel, carbon steel, and copper alloys. If your projects primarily involve welding aluminum or aluminum alloys, we highly recommend upgrading to our AC/DC multi-process models, such as the Azzuno ACDC-200L.
Q4: TIG-200L vs. TIG-180L: What is the main difference, and which should I choose?
Answer: The primary distinction lies in their current types and target applications. The Azzuno ACDC-200L features AC/DC output with up to 200A, making it the go-to choice for heavy-duty projects and aluminum fabrication. In contrast, the Azzuno TIG-180L is a dedicated DC welder optimized specifically for ultra-precision, low-heat thin-sheet metal tasks, cold welding, and spot welding on stainless steel where preventing distortion is critical.
Q5：What are the maximum output currents and duty cycles for the Azzuno TIG-180L under 110V and 220V power?
The Azzuno TIG-180L features an intelligent dual-voltage sensing inverter. When plugged into an industrial 220V outlet, it unlocks its full 180A capability with a 60% duty cycle for thicker steel fabrication. When running on a standard household 110V/120V garage circuit, the internal microprocessor safely limits the maximum welding current to 130A to prevent blowing home breakers, maintaining a stable 60% duty cycle at 130A and a 100% continuous duty cycle at 101A.
Q6：What is the exact difference between the COLD welding and SPOT welding modes on the Azzuno TIG-180L?
While both modes control heat input, they serve entirely different welding techniques. COLD mode delivers an ultra-short, millisecond-level single or repetitive discharge flash, precision-engineered for creating pristine, oxidation-free (silver/gold) weld beads on ultra-thin stainless steel down to 24 Gauge (0.6mm) without warping. SPOT mode utilizes a digital timer to sustain a slightly longer, controlled arc duration, perfectly optimized for sheet metal tacking, lap joints, and automotive body panel alignment.
Q7：Can the Azzuno TIG-180L weld aluminum, and what gas and tungsten setup are required for stainless steel?
No, the Azzuno TIG-180L is a dedicated DC (Direct Current) welder and cannot weld aluminum or aluminum alloys, which strictly require AC (Alternating Current). This machine is engineered exclusively for mild steel, carbon steel, copper, and stainless steel. For optimal DC HF TIG, Cold, and Spot operations, we highly recommend using 1/16" or 3/32" 2% Lanthanated (Gold/Blue) or Ceriated (Grey) tungsten electrodes ground to a sharp point, shielded by 100% pure Argon gas regulated at 15-20 CFH.
